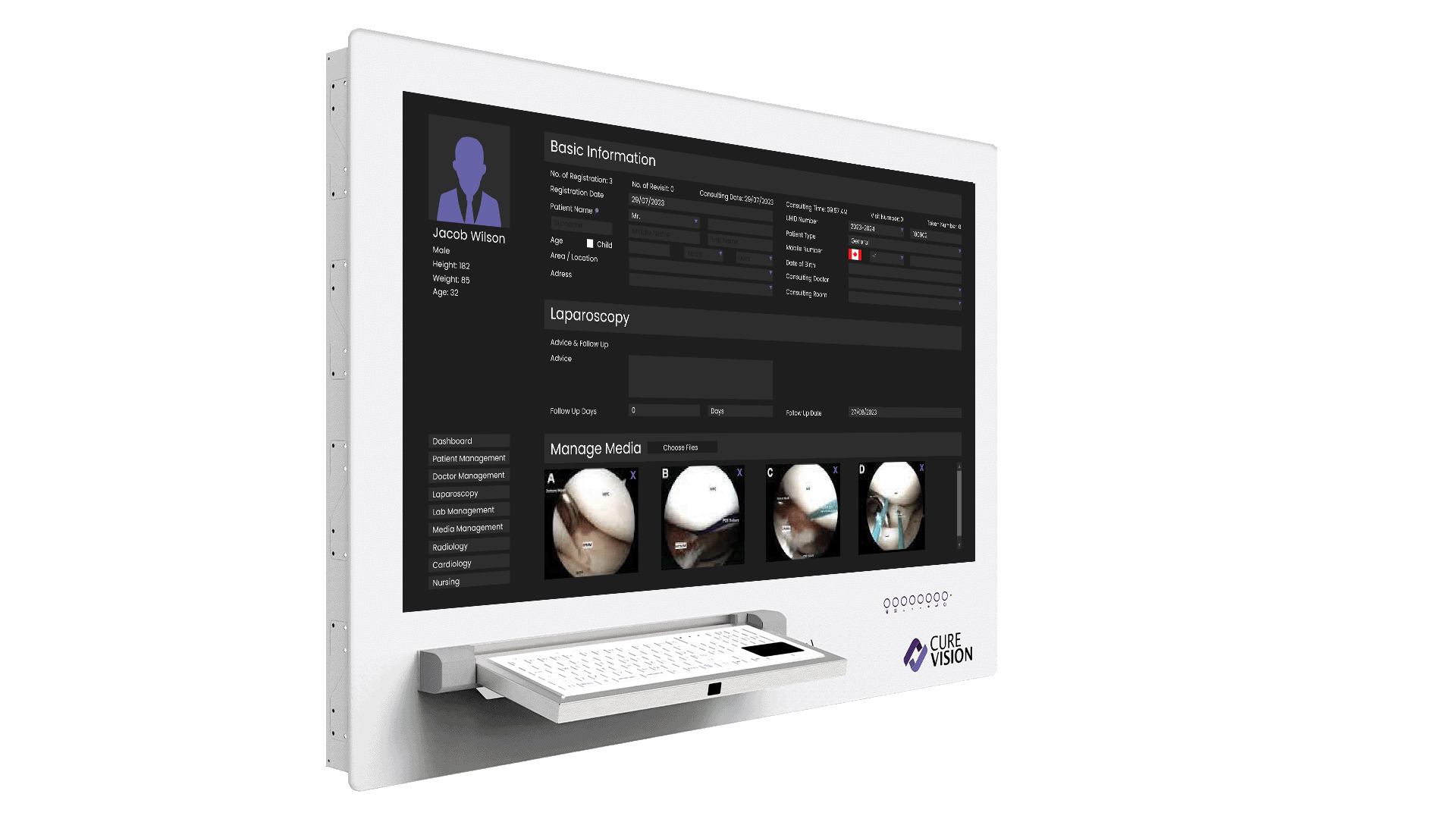

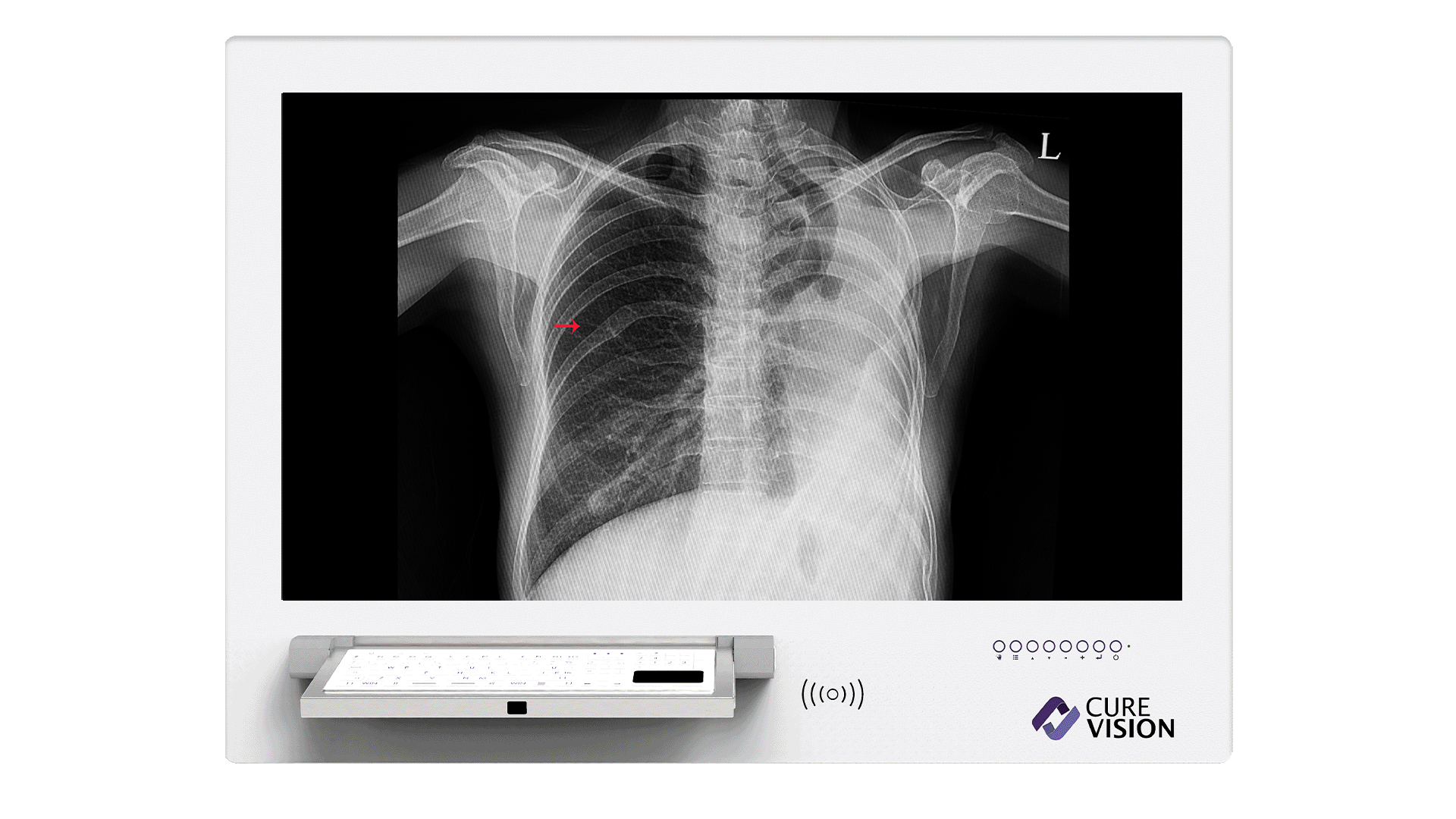

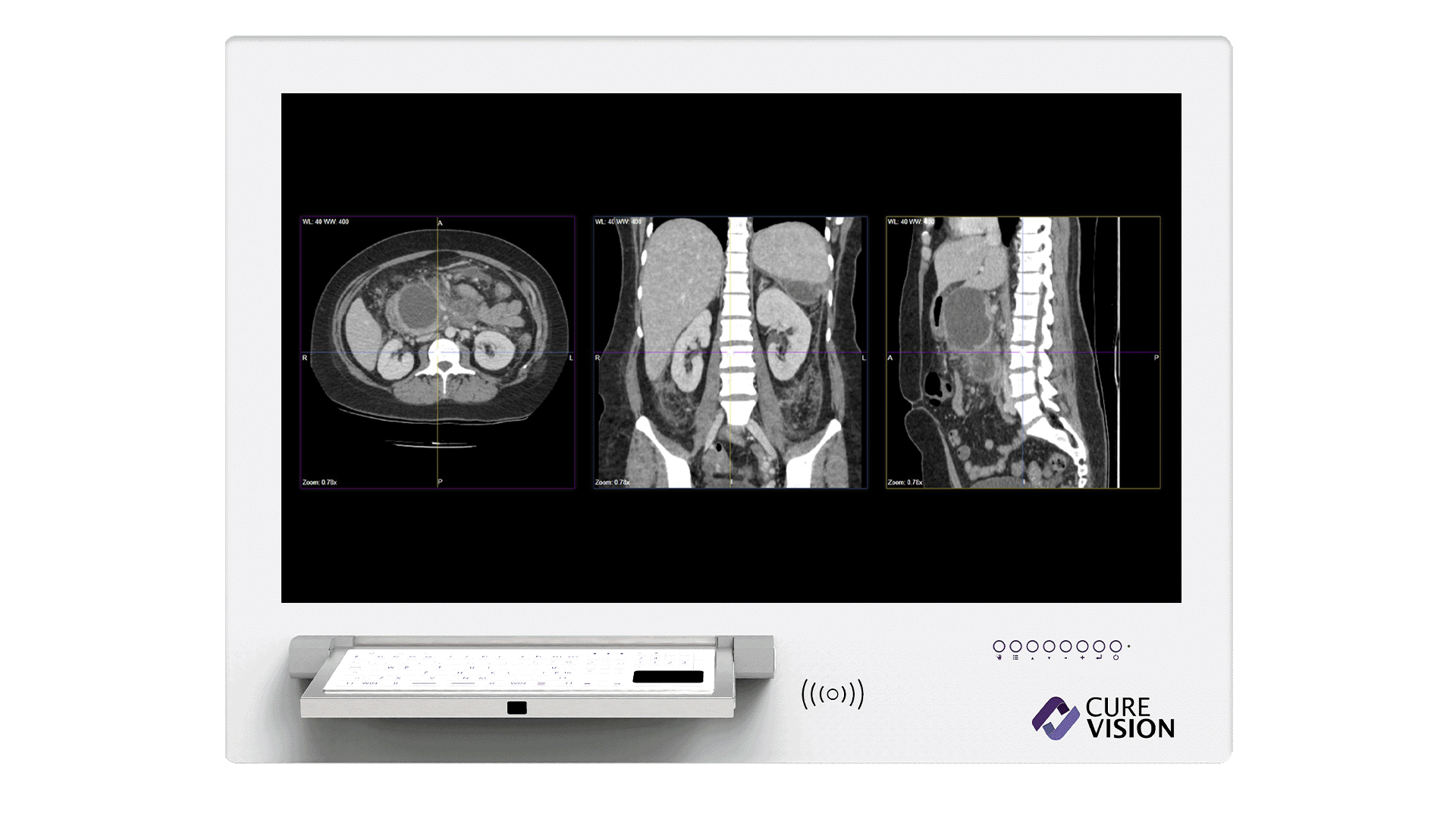

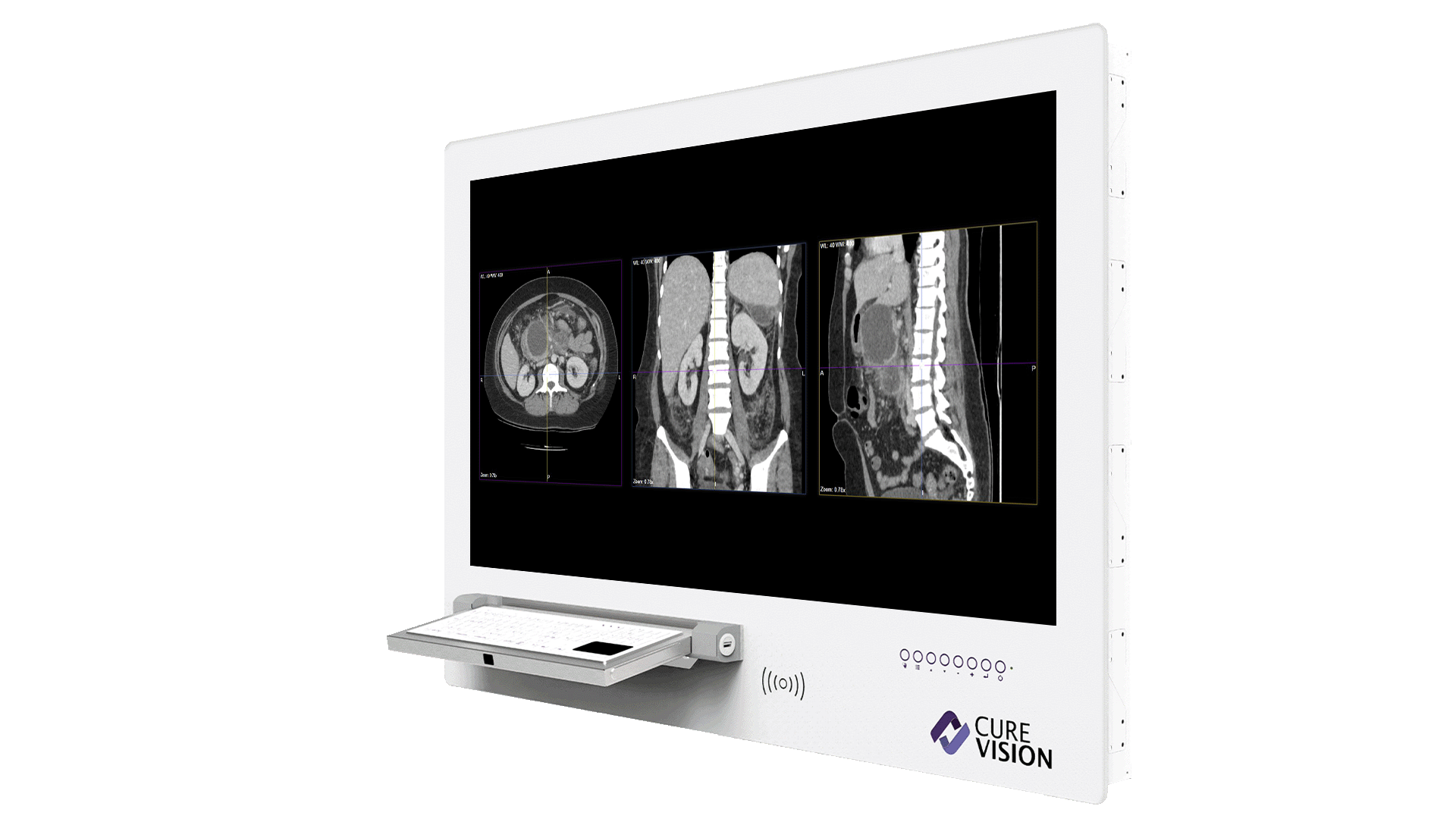

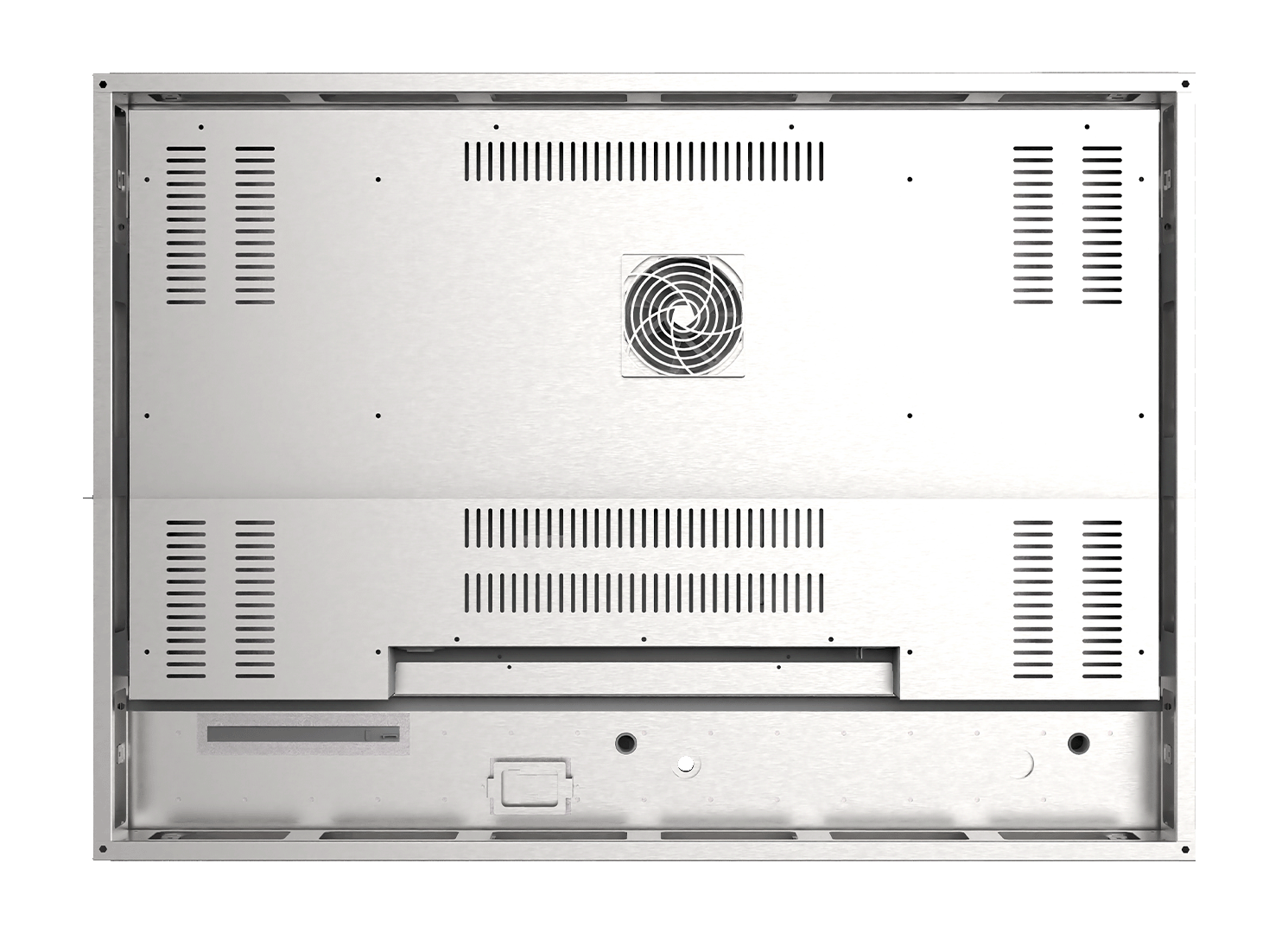

CURECONSOLE GP-446 Series

46" Full HD Inwall OR Console — HIS Integration, Barcode & RFID, IP65

The CureConsole GP-446 Series is a 46-inch Full HD inwall OR workstation designed to give surgical teams instant, hands-free access to patient records, HIS data, and procedure documentation — directly from the operating room, without leaving the sterile field.

For facilities equipping multiple ORs or upgrading existing suites, the GP-446 delivers the full CureConsole feature set — HIS integration, barcode and RFID tracking, and IP65-rated antibacterial interface — in a large-format inwall unit that balances screen size with practical clinical value.

✓ MDR Class I  ✓ IEC 60601-1  ✓ IEC 60601-1-2  ✓ IP65 Front Protection

Key Features:

46" Full HD Display — Large-Format OR Visibility: 46-inch Full HD display gives the surgical team clear visibility of patient data, HIS records, and procedure information — in a large-format inwall format suited for most OR configurations.

HIS Integration — Patient Data at the Surgical Field: Connect directly to your Hospital Information System — pulling patient records, scheduling data, and procedure information into the OR the moment the surgical team needs it. No separate workstation, no system switching.

Barcode & RFID Tracking: Track instruments, implants, consumables, and personnel automatically — integrated directly into the console. Reduce manual entry errors and generate audit-ready traceability records without additional hardware.

IP65 Front Protection — Disinfection-Ready: IP65-rated front panel withstands repeated disinfection with hospital-grade cleaning agents — without degrading surface integrity or display performance over time.

Foldable Antibacterial Keyboard & Touchpad: Integrated antibacterial keyboard and touchpad with foldable design — full OR workstation control without a separate input device, and without compromising sterile field protocols.

Staff & Consumable Record Keeping​​​​​​​: Log staff activities and consumable usage directly from the OR — supporting inventory management, compliance documentation, and procedural reporting without post-procedure reconstruction.

Is the GP-446 Right for Your OR?

The GP-446 is the right choice if:

• You need a large-format inwall OR console but Full HD resolution meets your clinical workflow requirements
• You are equipping multiple ORs and want a consistent, large-screen inwall workstation at a practical scale
• Your facility is upgrading existing OR suites and needs a proven inwall console with HIS integration and RFID tracking
• You want the same full feature set as the GP-449 — HIS, RFID, IP65, antibacterial — in a slightly more compact format

Consider the GP-449 instead if your OR requires 4K resolution or the largest available display size for high-volume or flagship surgical suites.
Consider the GP-424 instead if a 24-inch display is sufficient for your OR's space and team size.

Want to see the GP-446 in a real OR environment?

Our team will walk you through HIS integration options, RFID configuration, and installation requirements for your specific facility.

🔗 Request a Demo​​​​​​​

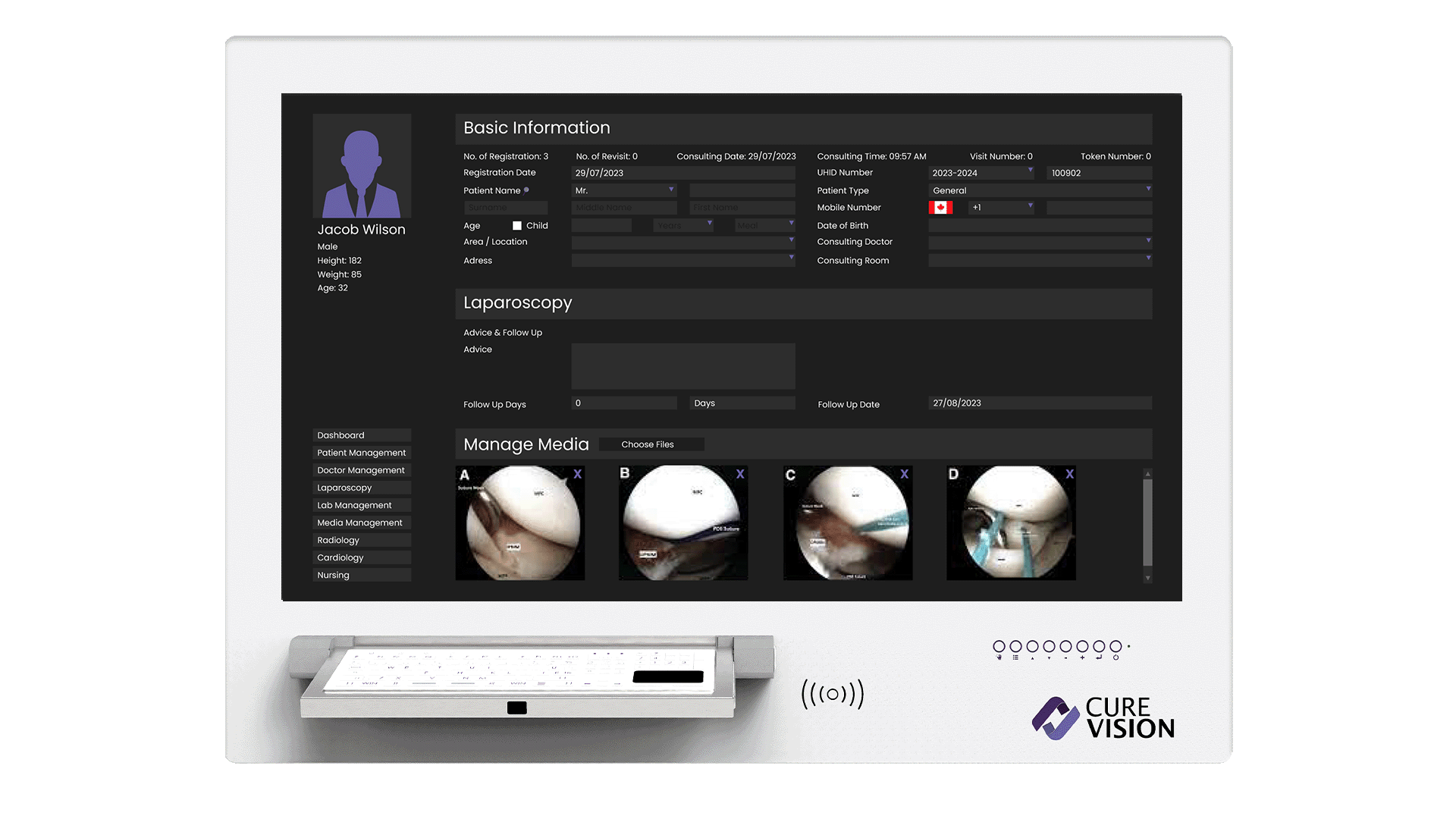

Access to Patient Information and Personnel Tracking
Access to Patient Information and Personnel Tracking
Material and Consumable Tracking with Barcode and RFID System
Material and Consumable Tracking with Barcode and RFID System
Antibacterial Keyboard and Touchpad
Antibacterial Keyboard and Touchpad

Sectors

Technical Specifications

System
CPU :
Intel® Icore i7 8700
Cache :
12 mb
Memory :
1 x DDR4 SoDIMM 16 GB 2400MHZ
Video RAM :
Intel® UHD 630 Graphics
Chipset :
Intel® H310
System Fan :
Slim Radial Fan
I/O
Capture Card :
HDMI Analog svideo
Serial Port :
(1 x RS-232/422/485, 1 x RS-232)
Parallel Port :
N.A.
USB Port :
4 x USB 2.0 , 4 x USB 3.0
KB / MS :
N.A
LAN :
2 x LAN Intel® I217V Ethernet
Keyboard :
Integrated Antibacterial Keyboard
Mouse :
Integrated Antibacterial Mouse
Optical Drive :
DVD-RW Optical Driver
Wireless LAN :
802.11 b / g / AC
Audio :
Line in & out (AC’97 codec audio)
Expansion Slot :
PCIe / MiniPCIe
Data Storage
HDD / Type :
Vibration Resistant Slot 2.5” (2 TB HDD)
SSD :
256 GB
Feed
Input :
220VAC
Extra Video Output
Type :
2xDP/1xVGA/HDMI
Max. Resolution :
VGA/HDMI(1920x1080) , DP(4096X2304)
LCD Screen
Type and Size :
46" / 16:9 / DICOM Preset (Optional)
Max. Resolution :
1920x1080
Pixel Pitch :
0.53025mm x 0.053025mm
Max Color :
1073.7 M
Brightness (cd/m2) :
700 nits
Contrast Ratio :
4000/1
Viewing Angle :
178°(H),178°(V)
Back Light MTBF :
50,000 hours
Touch Screen :
N.A.
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Front Frame :
Custom Built-in Glass
Weight :
Variable according to screen size
Dimensions :
Variable by screen size
Mounting :
Built-in
Output
Screen Outputs :
2 x SDI In/Out + 1 x DP 2 x DVI 1 x VGA + S-Video In/Out + CVBS In/Out + YPbPr / XsRGB In/Out
Order Code
CPU :
İ7 8700
PSU :
AC220
Optical Drive :
DVD-RW
RAM :
R16
HDD :
2TB HDD / SSD256
Wifi :
802.11 b / g / AC
DICOM Viewer :
DICOM Preset
