CURECONSOLE GP-449 Series

Clear and Detailed Imaging in the Operating Room with 4K Resolution

The CureVision OR Console sets a new standard in clinical efficiency, offering clinicians fast, seamless access to retrospective procedures and real-time patient information. With a 49'' widescreen 4K medical display, it delivers crystal-clear imaging in operating room environments, supporting precise decision-making and workflow optimization. Designed with future-ready features and maximum compatibility, the CureVision OR Console is the ultimate clinical workstation, combining usability, hygiene, and advanced technology into one integrated solution.

Key Advantages:

Effortless Information Retrieval: Clinicians can easily access both historical procedure data and up-to-date patient information, creating a streamlined surgical workflow that enhances productivity and accuracy.

Compatibility & Future-Readiness: The CureVision OR Console is built for system integration, working smoothly with existing clinical software and infrastructure. Its modular configuration ensures support for future applications, making it a scalable and sustainable solution.

Key Features:

HIS Integration for Patient Information Access: Seamless integration with Hospital Information Systems (HIS) enables fast, secure access to comprehensive electronic patient records, ensuring clinicians have all the data they need at the point of care.

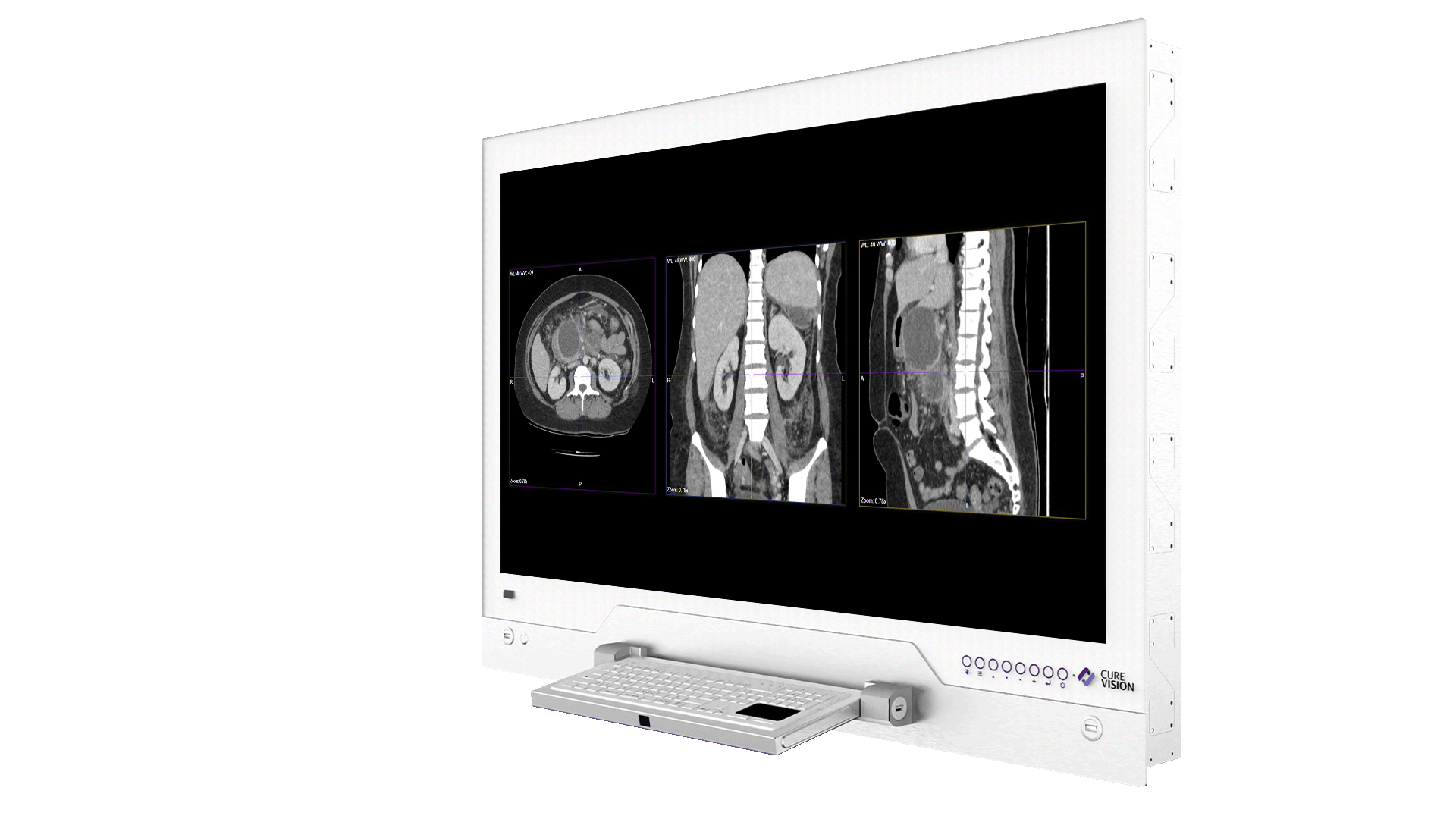

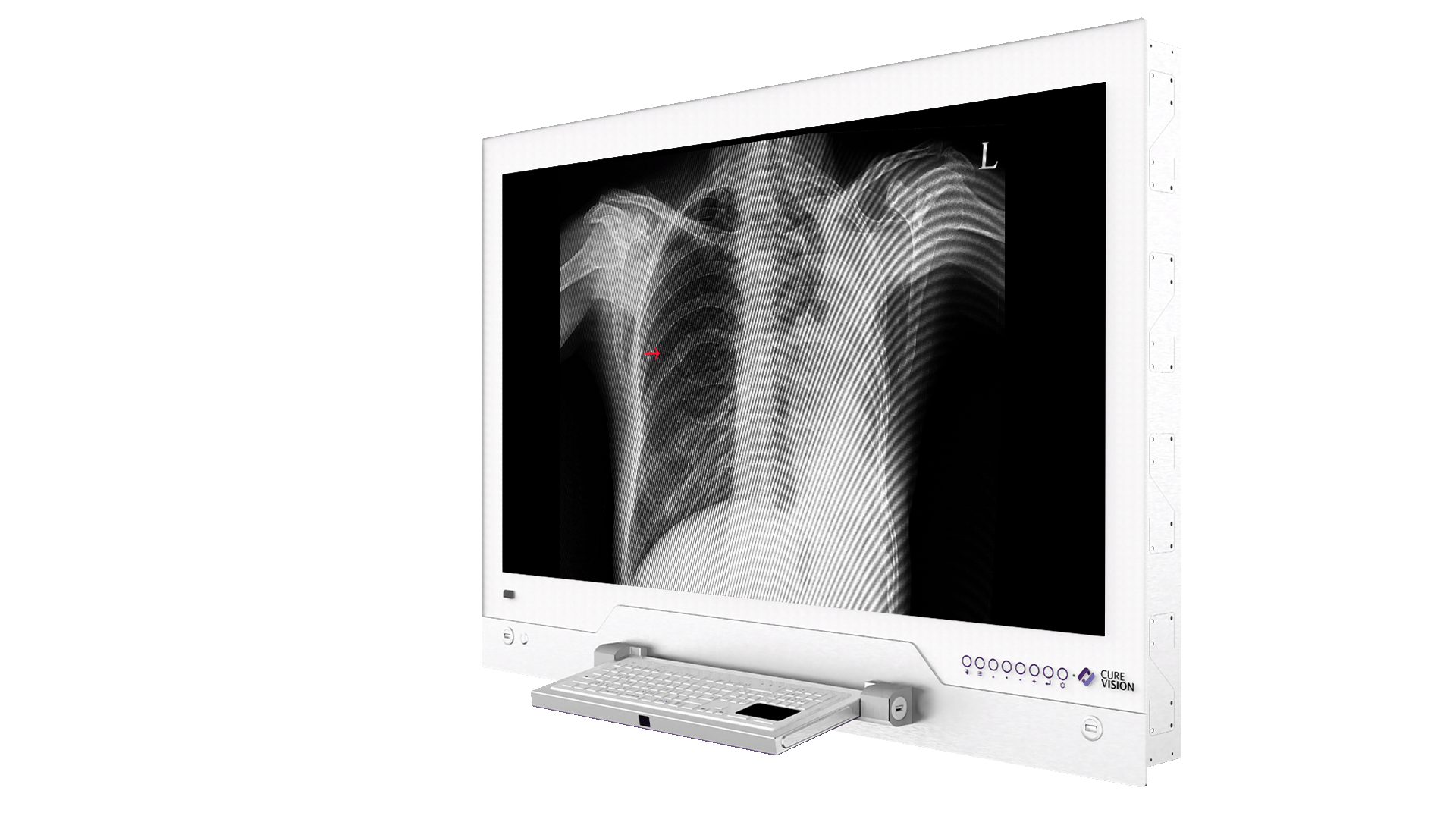

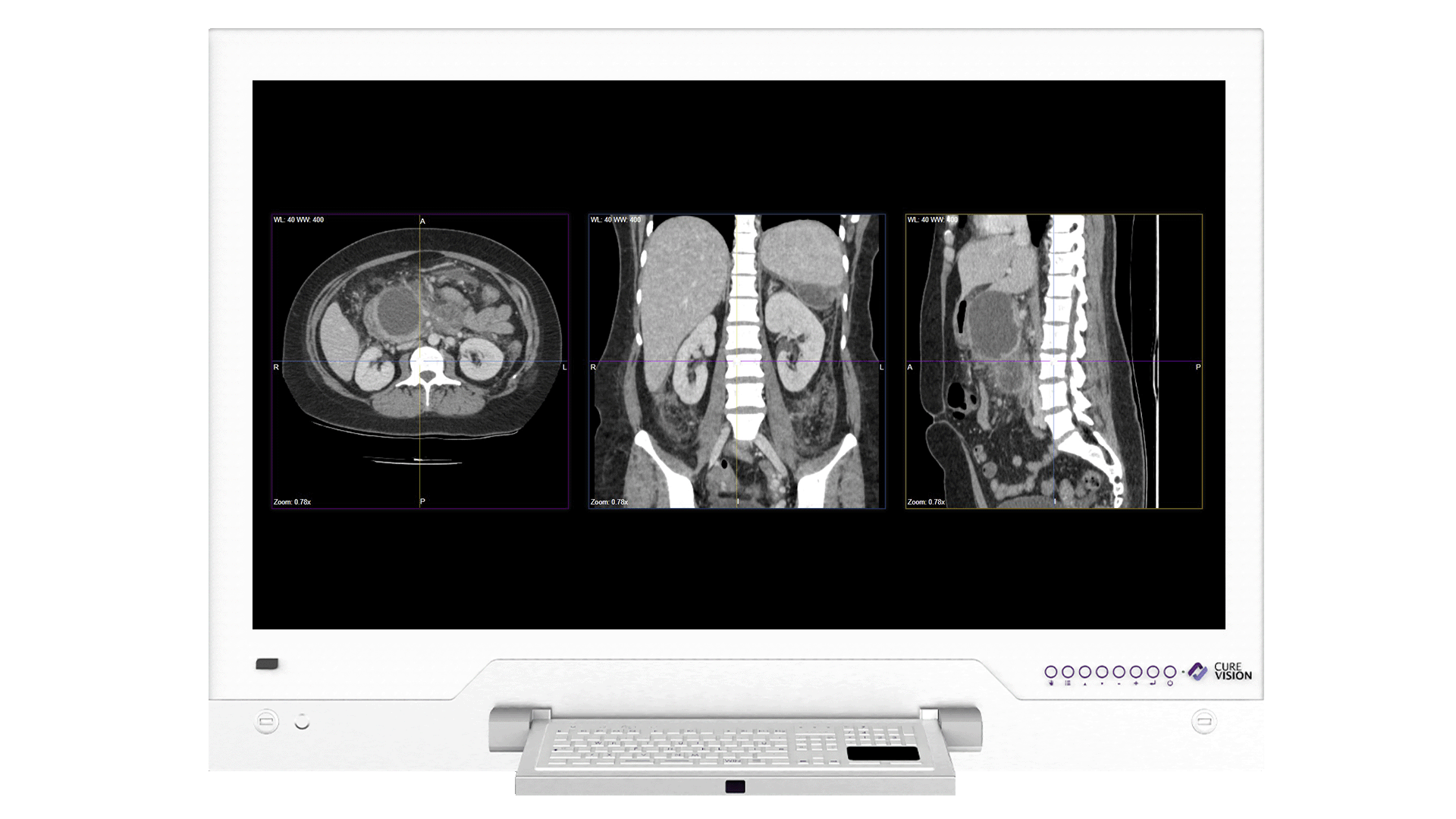

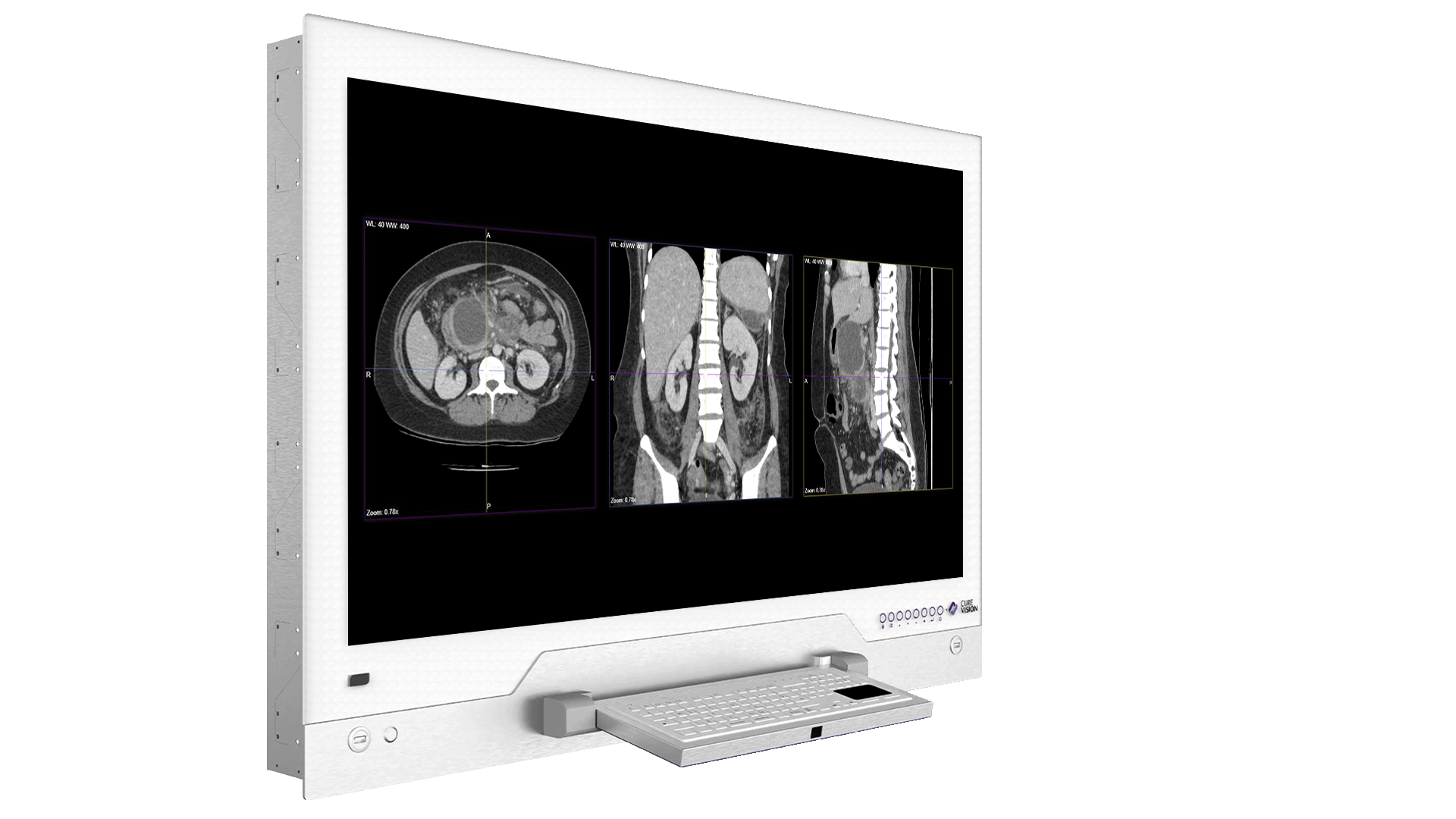

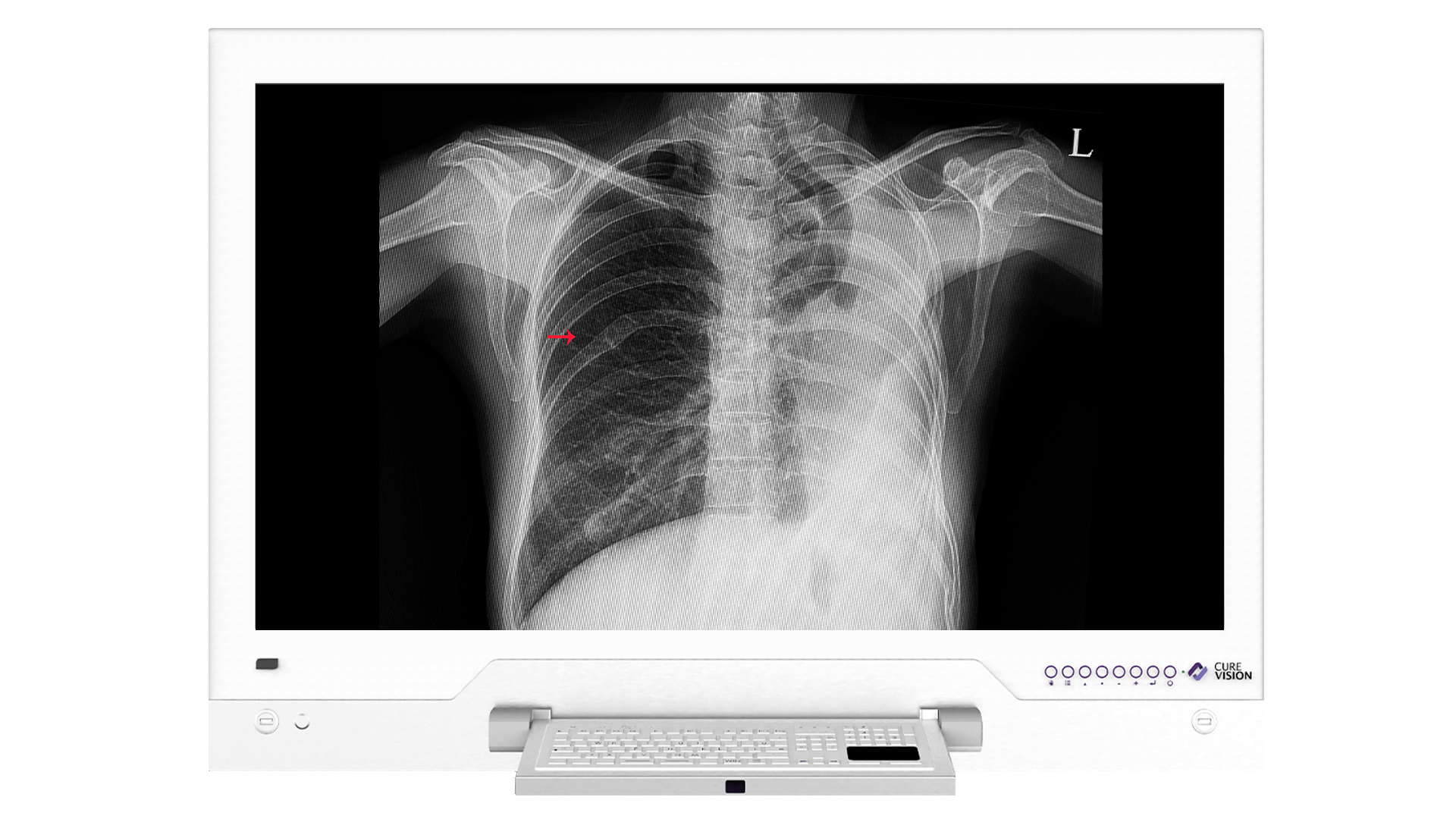

49'' Widescreen 4K Medical Display: The large 49-inch 4K medical display provides high-resolution, detailed images ideal for use in the operating room, supporting accurate clinical assessments and enhanced visual clarity during procedures.

Integrated Barcode and RFID Reader: With a built-in RFID medical device reader and barcode scanner, the console improves traceability of medical equipment, consumables, and patient data—reducing manual input and increasing operational efficiency.

Staff and Consumables Record Management: Track and manage staff activity and consumable usage in real time. This feature supports effective inventory management and procedure optimization, contributing to overall hospital performance.

IP65 Medical Console Front with Antibacterial Surface: The IP65-rated disinfectable front panel ensures resistance to dust and liquids, while supporting strict hygiene protocols. Ideal for sterile clinical environments, it is durable and easy to clean.

Foldable Antibacterial Keyboard & Touchpad: Equipped with a foldable antibacterial keyboard and touchpad, the console prioritizes hygienic design while saving space in crowded operating rooms.

Operating Room Records
Operating Room Records

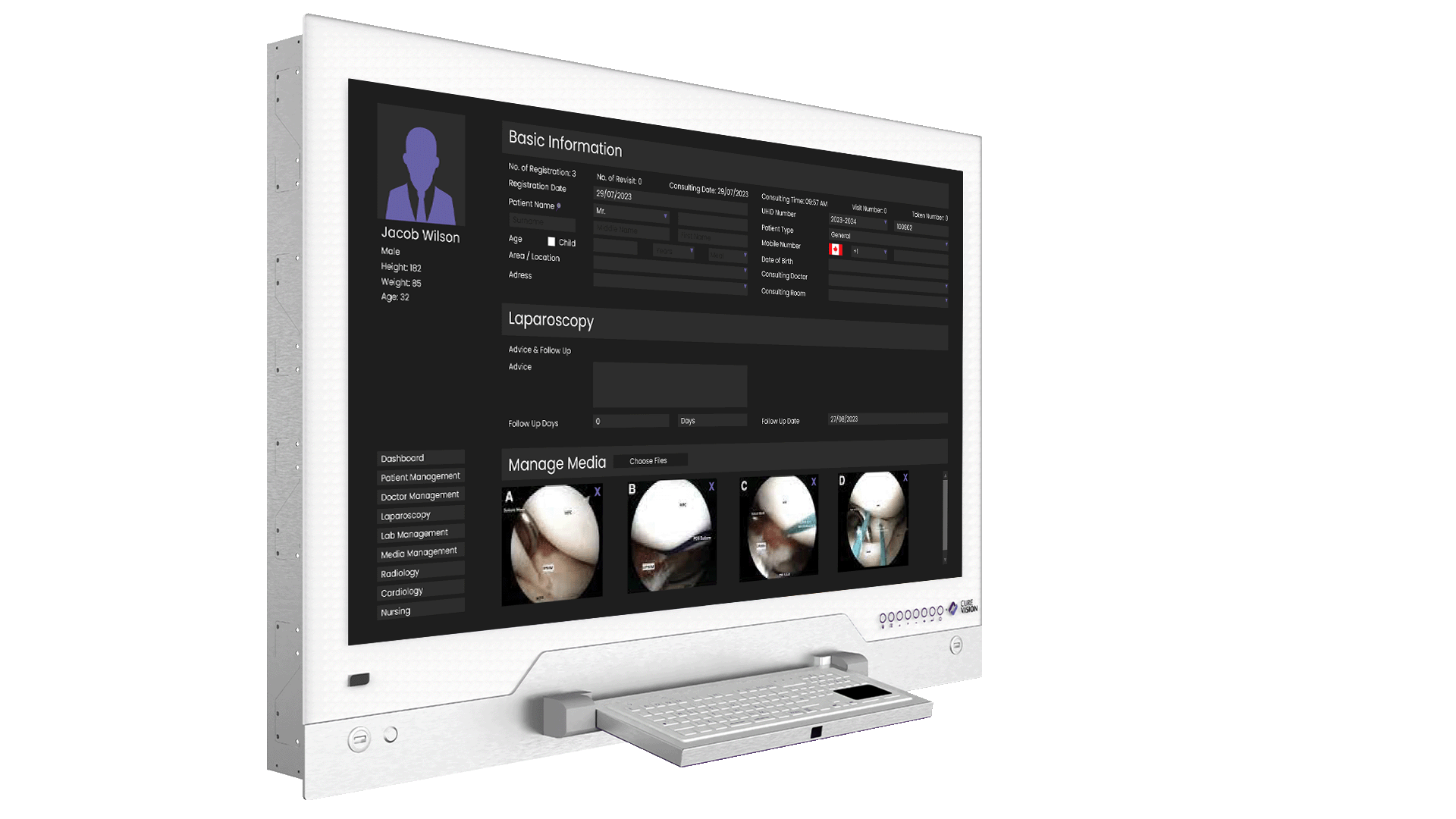

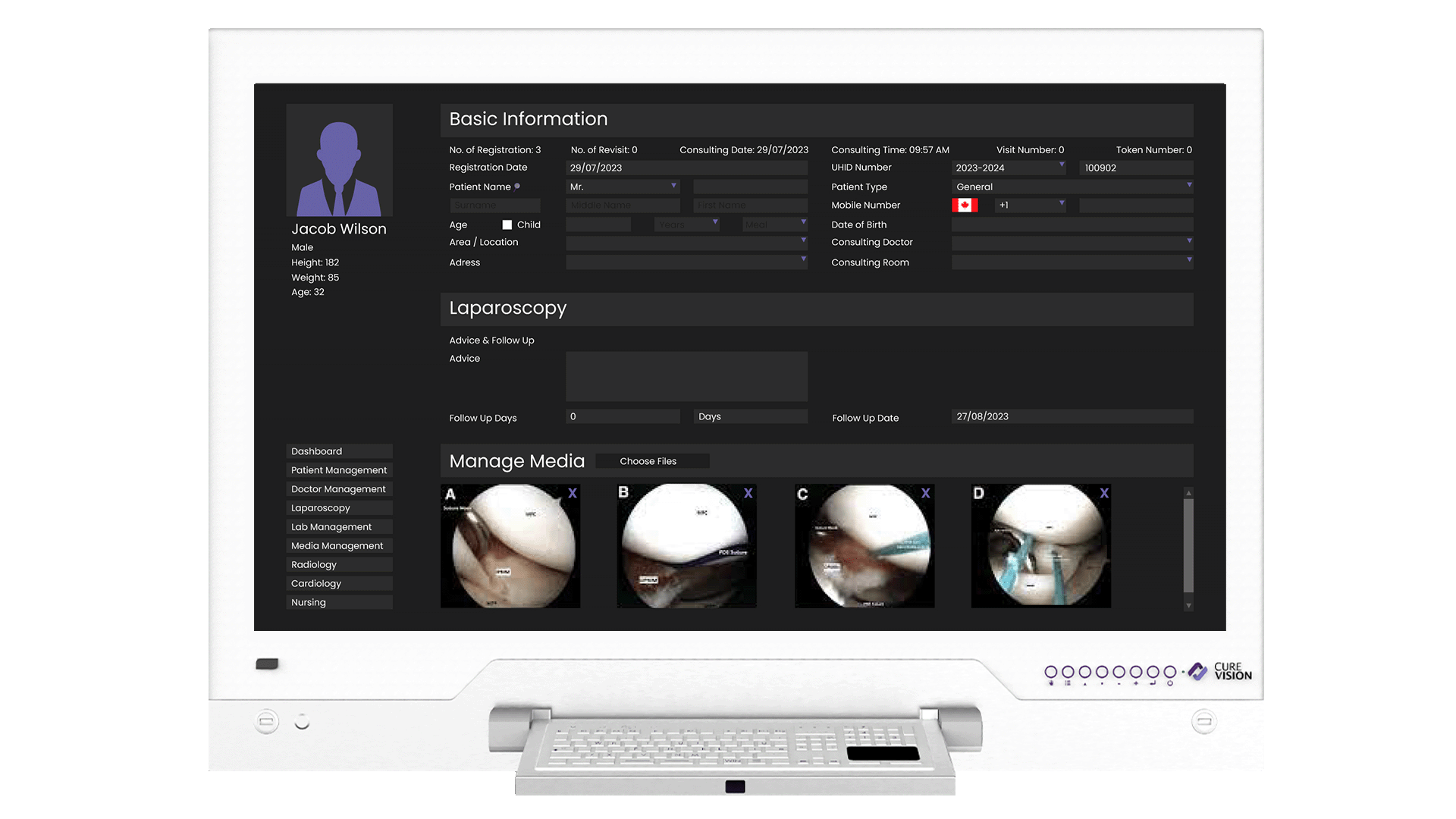

Access to Patient Information and Personnel Tracking
Access to Patient Information and Personnel Tracking
Antibacterial Keyboard and Touchpad
Antibacterial Keyboard and Touchpad

Sectors

Technical Specifications

System
CPU :
Intel® Icore i5 12th Generation
Cache :
12 mb
Memory :
1 x DDR4 SoDIMM 16 GB 2400MHZ
Video RAM :
Intel® UHD 630 Graphics
Chipset :
Intel® H310
System Fan :
Slim Radial Fan
I/O
Capture Card :
HDMI Analog svideo
Serial Port :
(1 x RS-232/422/485, 1 x RS-232)
USB Port :
4 x USB 2.0 , 4 x USB 3.0
LAN :
2 x LAN Intel® I217V Ethernet
Keyboard :
Integrated Antibacterial Keyboard
Mouse :
Integrated Antibacterial Mouse
Optical Drive :
DVD-RW Optical Driver
Wireless LAN :
802.11 b / g / AC
Audio :
Line in & out (AC’97 codec audio)
Expansion Slot :
PCIe / MiniPCIe
Data Storage
HDD / Type :
Vibration Resistant Slot 2.5” (2 TB HDD)
SSD :
256 GB
Feed
Input :
220VAC
Extra Video Output
Type :
2xDP/1xVGA/HDMI
Max. Resolution :
VGA/HDMI(3840x2160) , DP(4096X2304)
Inputs
Monitor Inputs :
4 x DP
LCD Screen
Type and Size :
49" / 16:9 / DICOM Preset (Optional)
Max. Resolution :
3840 x 2160
Pixel Pitch :
0.53025mm x 0.053025mm
Max Color :
1073.7 M
Brightness (cd/m2) :
700 cd 4K
Contrast Ratio :
4000/1
Viewing Angle :
178°(H),178°(V)
Back Light MTBF :
50,000 hours
Touch Screen :
N.A
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Front Frame :
Custom Built-in Glass
Weight :
Variable according to screen size
Dimensions :
Variable by screen size
Mounting :
Built-in
Order Code
CPU :
i5-12th Generation
PSU :
AC220
Optical Drive :
DVD-RW
RAM :
R16
HDD :
2TB HDD / SSD256
Wifi :
802.11 b / g / AC
DICOM Viewer :
DICOM Preset

Support

Please contact us for information about the products or for technical support.
