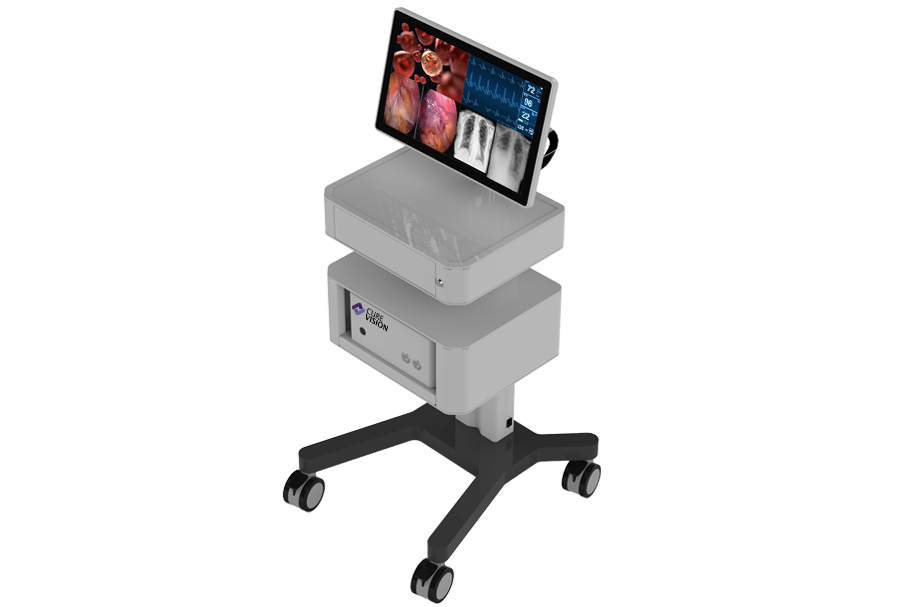

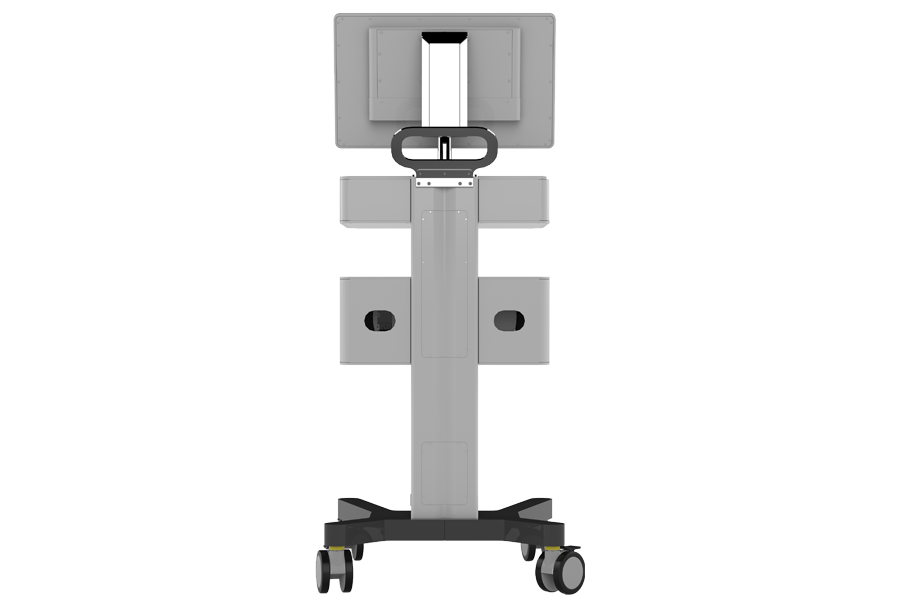

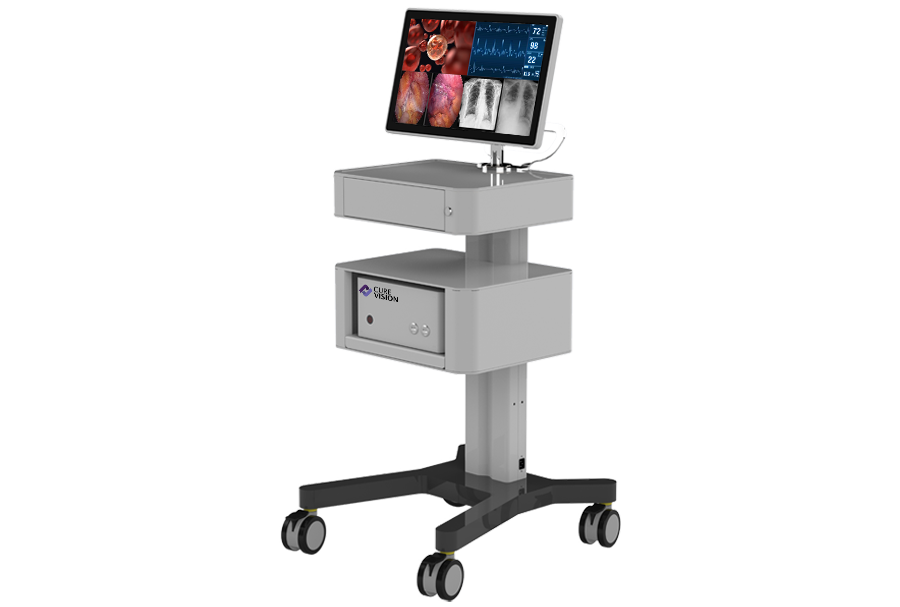

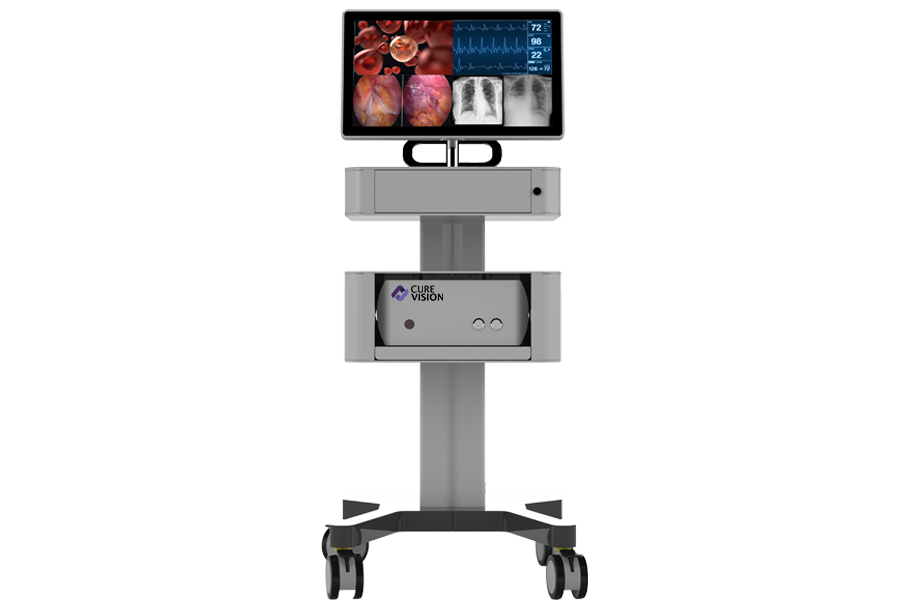

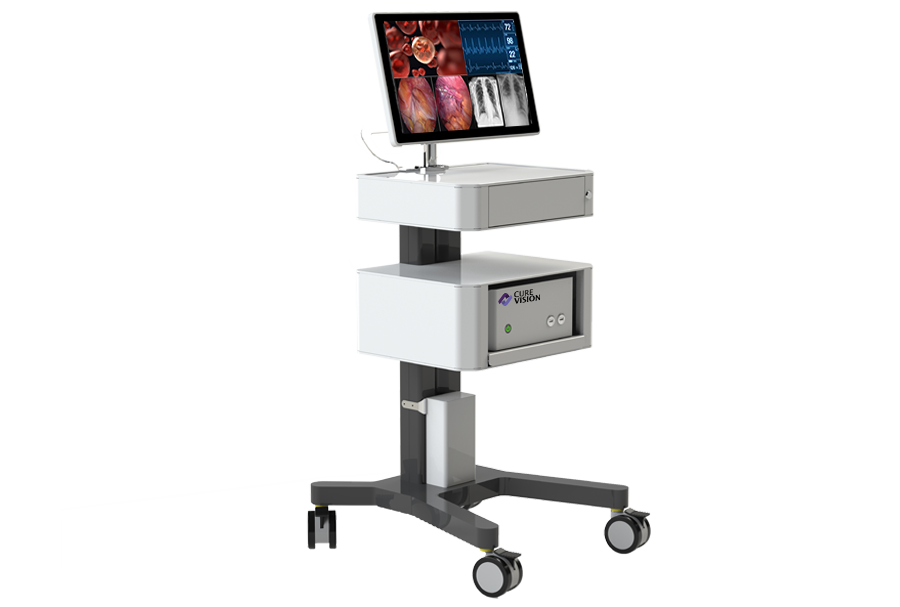

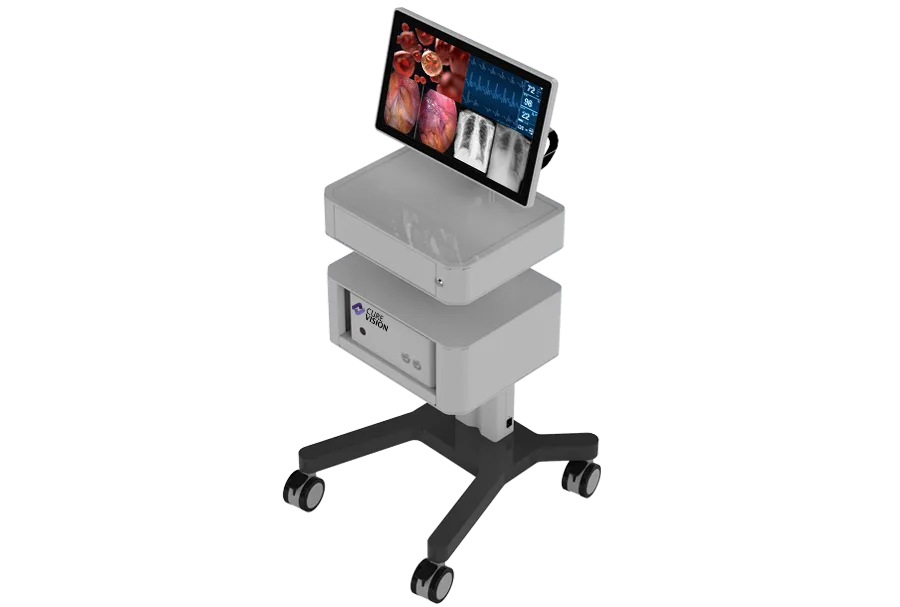

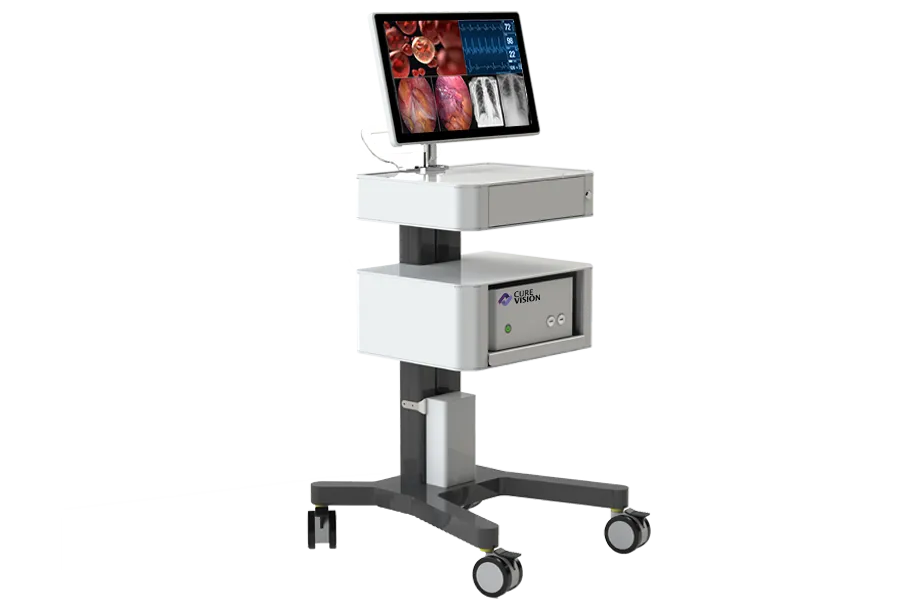

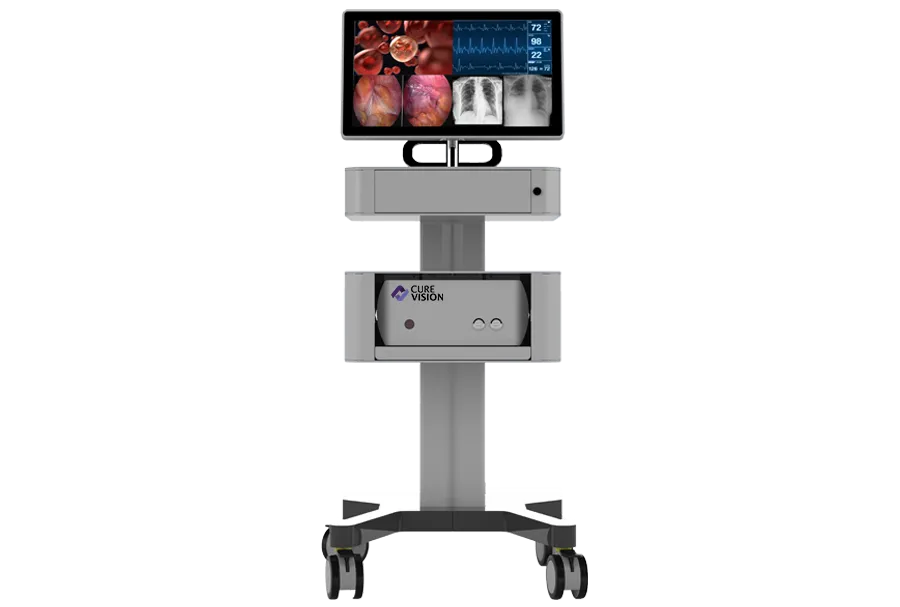

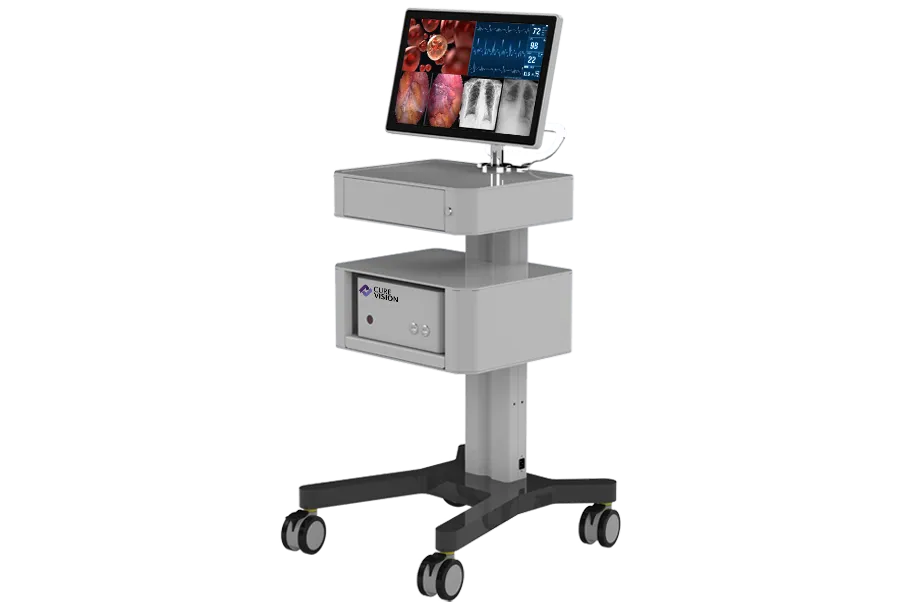

CUREIQ Telemedicine Cart

CUREIQ Telemedicine Cart | Mobile OR Imaging & Telemedicine System

The CUREIQ Telemedicine Cart brings the full capability of CureVision's inwall OR integration system to a mobile platform — designed for facilities that need surgical recording, PACS access, and live telemedicine without permanent wall installation.

Mounted on a mobile cart with lockable wheels, the CUREIQ moves between operating rooms, procedure rooms, and clinical areas — giving surgical teams the same imaging, recording, and consultation tools wherever they need them.

✓ IP65 Front Protection    ✓ Antibacterial Surfaces & Keyboard

Key Specifications:

Mobile OR Workstation — Moves Where You Need It: Compact, wheeled design with lockable castors allows the cart to move freely between ORs and procedure rooms — giving surgical teams full OR integration capabilities without permanent installation.

21" Medical-Grade Display: High-resolution 21-inch display provides clear visualization of surgical imaging, PACS images, patient data, and multi-source camera feeds at the point of care.

PACS & HIS Access at the Surgical Field: Access radiology images, patient records, and procedure data directly from the cart — without leaving the sterile field or returning to a fixed workstation.

4-Channel Video Input — Multi-Source Imaging: Connect endoscopes, surgical cameras, fluoroscopy, and patient monitoring simultaneously — displayed side by side on a single screen. No switching between feeds mid-procedure.

IP65 Front Protection — Disinfection-Ready: IP65-rated front panel withstands repeated disinfection with hospital-grade cleaning agents — maintaining hygiene standards across every clinical environment.

Antibacterial Materials & Keyboard: Cart surfaces and integrated antibacterial keyboard support strict OR hygiene protocols. Keyboard sits on a dedicated drawer for easy access and space efficiency.

Imaging & Recording Functions:

Surgical Video Recording: Record procedures directly from the cart — timestamped, stored on the integrated 2TB HDD, and retrievable for clinical review, resident training, or medico-legal documentation.

Camera & Multi-Source Video Management: Manage multiple simultaneous camera inputs from a single interface. Switch sources and record any combination without interrupting the procedure.

PACS Image Transfer: Transfer surgical recordings and radiology images directly to your PACS — no manual export required.

Live Telemedicine & Remote Consultation: Stream live surgical footage to remote specialists for real-time consultation — from any room in the facility, without additional hardware.

Is the CUREIQ Cart Right for Your Facility?

The CUREIQ Telemedicine Cart is the right choice if:

  • Your facility cannot accommodate permanent inwall OR installation — due to existing wall systems, renovation constraints, or lease restrictions
  • You need OR integration capabilities in multiple rooms but cannot justify a fixed unit in each
  • You are piloting surgical recording and telemedicine before committing to a full inwall installation
  • Your procedure rooms, hybrid ORs, or outpatient surgical suites need flexible, relocatable imaging and telemedicine capability

Consider an inwall CureLink instead if: you have a dedicated OR suite and want a permanent, space-optimized installation with the largest available display size.

Need OR integration capabilities without a permanent wall installation? The CUREIQ Telemedicine Cart delivers the same surgical recording, PACS access, and telemedicine tools as CureVision's inwall systems — on a mobile platform that goes where your team goes.

🔗 Request a Demo



Ergonomic Design
Ergonomic Design
IP65 Front Panel Protection
IP65 Front Panel Protection
Imaging Function
Imaging Function
Camera and Video Management
Camera and Video Management
Recording and Archiving Function
Recording and Archiving Function

Sectors

Technical Specifications

System
CPU :
Intel® Icore i7 8700
Cache :
12 mb
Memory :
1 x DDR4 SoDIMM 16 GB 2400MHZ
Video RAM :
Intel® UHD 630 Graphics
Chipset :
Intel® H310
System Fan :
Slim Radial Fan
I/O
Capture Card :
HDMI Analog Svideo
Serial Port :
(1 x RS-232/422/485, 1 x RS-232)
USB Port :
4 x USB 2.0 , 4 x USB 3.0
LAN :
2 x LAN Intel® I217V Ethernet
Keyboard :
Integrated Antibacterial Keyboard
Mouse :
Integrated Antibacterial Mouse
Optical Drive :
DVD-RW
Wireless LAN :
802.11 b / g / AC
Audio :
Line in & out (AC’97 codec audio)
Expansion Slot :
PCIe / MiniPCIe
Data Storage
HDD / Type :
Vibration Resistant Slot 2.5” (2 TB HDD)
SSD :
256 GB
Feed
Input :
220VAC
Extra Video Output
Type :
2xDP/1xVGA/HDMI
Max. Resolution :
VGA/HDMI(1920x1080) , DP(4096X2304)
LCD Screen
Type and Size :
21" / 16:9
Max. Resolution :
1920x1200
Pixel Pitch :
0.270mm x 0.270mm
Max Color :
1.07M
Brightness (cd/m2) :
900 nits
Contrast Ratio :
1000/1
Viewing Angle :
160°(H),160°(V)
Back Light MTBF :
50,000 hours
Touch Screen :
N.A
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Weight :
Variable according to screen size
Dimensions :
Variable by screen size
Mounting :
Built-in
Glass :
Custom Built-in Glass
Output
Screen Outputs :
2 x SDI In/Out 1 x DP 2 x DVI 1 x VGA S-Video In/Out CVBS In/Out YPbPr / XsRGB In/Out
Order Code
CPU :
İ7 8700
PSU :
AC220
Optical Drive :
DVD-RW
RAM :
R16
HDD :
2TB HDD / SSD256
Wifi :
802.11 b / g / AC
DICOM Viewer :
DICOM Preset
RFID Reader :
N.A
Writer :
N.A
