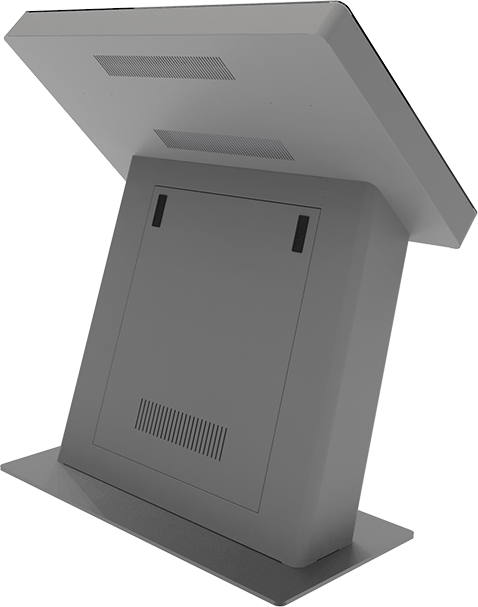

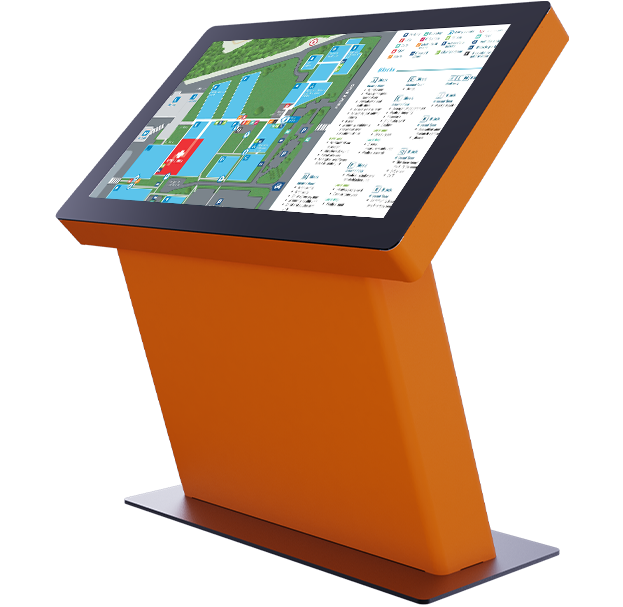

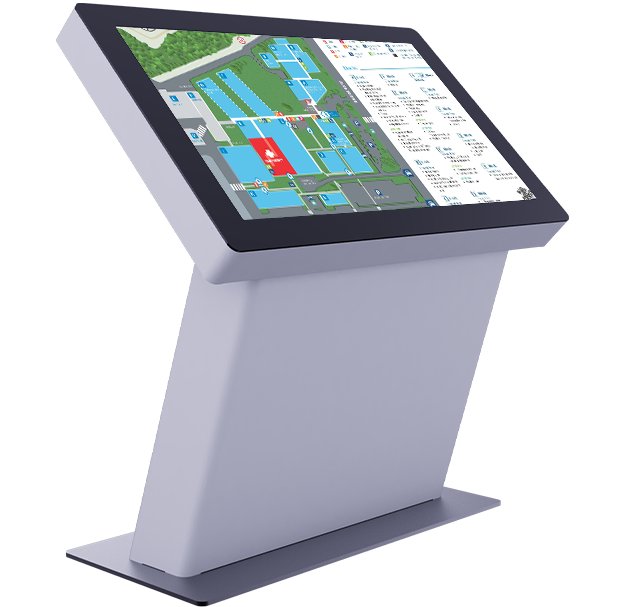

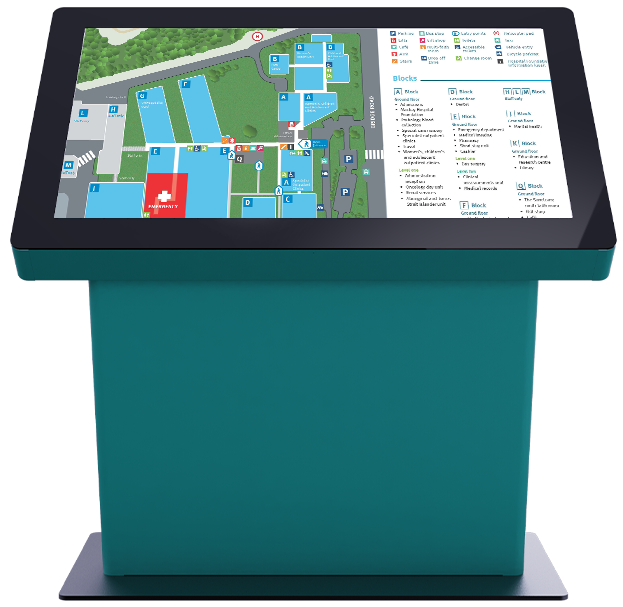

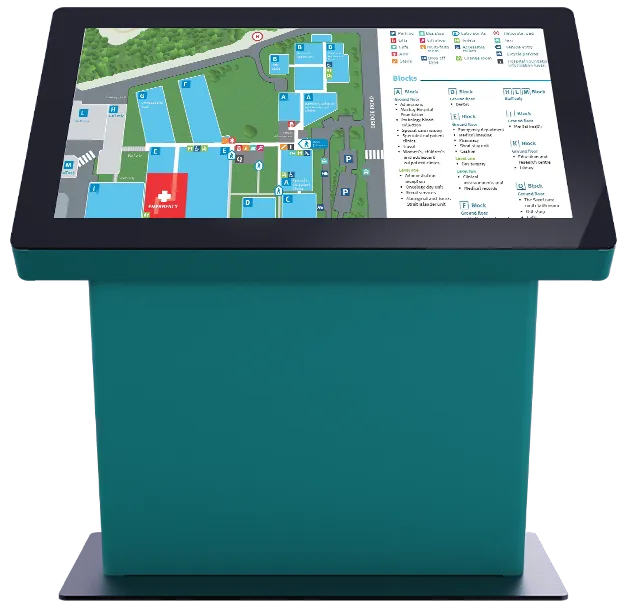

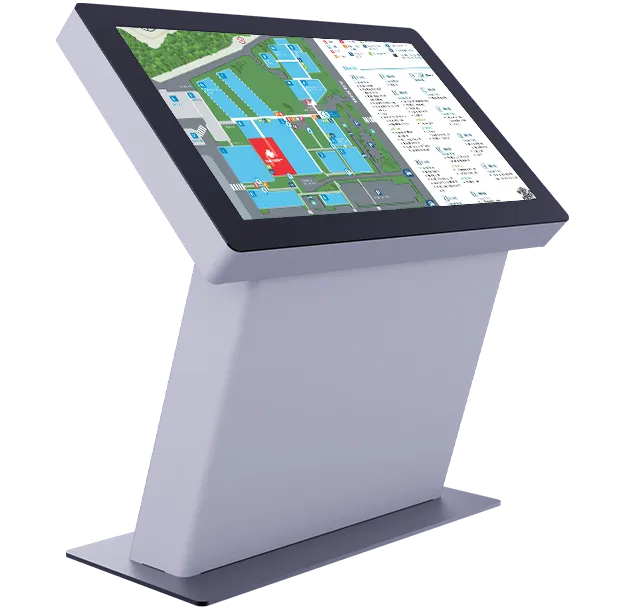

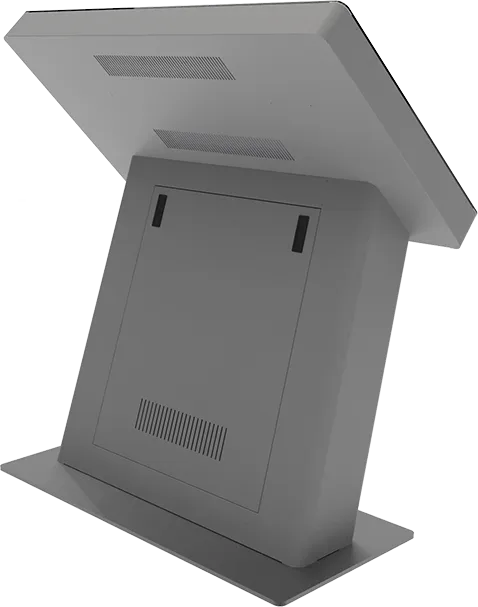

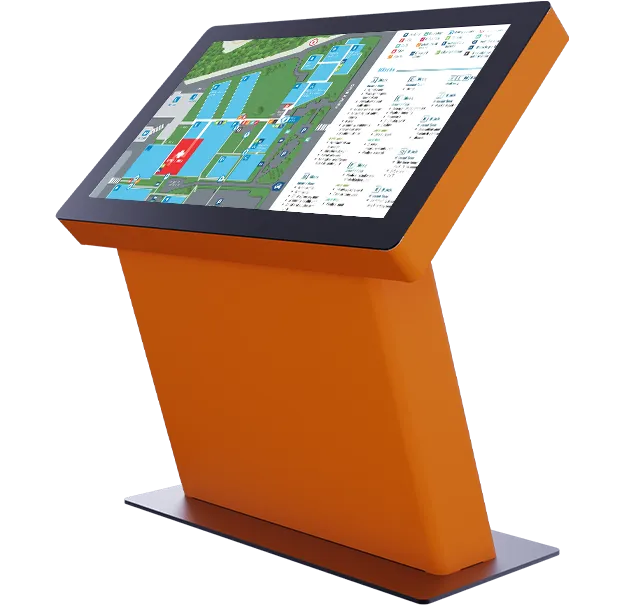

TM-349 Series

49'' Touch Display

CureVision Wayfinding kiosks redefine the visitor experience, providing swift and seamless navigation for guests. Beyond navigation, these kiosks offer a versatile platform with powerful revenue-generating capabilities, enhancing overall visitor engagement. CureVision Wayfinding Kiosks guide visitors and serve as multifunctional hubs, offering added value through revenue generation and effective communication in healthcare and various other settings.

Key Features:

Horizontal Touch Solution: The wayfinding kiosks feature a horizontal touch solution, ensuring a user-friendly interface for quick and effortless navigation.

Ergonomic and Stylish Design: With an emphasis on aesthetics and functionality, CureVision Wayfinding kiosks boast an ergonomic and stylish design that aligns seamlessly with their surroundings.

Interactive Solution Opportunity for Customers: Create engaging user experiences through interactive solutions, turning the wayfinding kiosk into a dynamic platform for information and interaction.

Vandal Resistant Design: The kiosks are designed to withstand external forces, featuring a vandal-resistant design that ensures durability in various environments.

Customization with Corporate Color and Logo: Tailor the kiosks to reflect your brand identity by customizing them with corporate colours and logos, creating a cohesive visual experience.

Added Value for Healthcare:

Efficient Destination Finding: Visitors can effortlessly find their destination, streamlining their journey within healthcare facilities.

Revenue-Generating Advertising Platform: Utilize valuable digital advertising space on the kiosks, turning them into a powerful revenue-generating platform.

Communication Hub for Information: Disseminate crucial information such as events, announcements, and emergency alerts through CureVision Wayfinding Kiosks, ensuring effective communication.

Multilingual Configuration: Configurable in multiple languages, the kiosks cater to a diverse audience, breaking language barriers and making information accessible to a broader scope.

Interactive Design
Interactive Design
Wide Touch Screen
Wide Touch Screen
Ergonomic Design
Ergonomic Design
Vandal Resistance
Vandal Resistance
Customizing with Corporate Color and Logo
Customizing with Corporate Color and Logo

Sectors

Technical Specifications

System
CPU :
Intel® Icore i5/i7
Cache :
2nd Level depends on CPU
Memory :
4GB / 8GB
Video RAM :
Max 128 MB shared memory
Control :
Intel® Soc / QM77
Watchdog Timer :
255 Level Reset
System Fan :
N.A.
I/O
Serial Port :
N.A.
USB Port :
2 x USB 2.0
LAN :
1 x Gigabit Ethernet (Opsiyonel 2 x Gigabit Ethernet)
Wireless LAN :
802.11 b / g(Optional)
Audio :
2x10W Stereo Speaker
Data Storage
HDD / Type :
2.5 ”(500 GB HDD)
SSD :
64 GB / 128GB / 256 GB
Feed
Input :
220VAC
Extra Video Output
Type :
HDMI/DVI/VGA Optional
Max. Resolution :
1920x1080
LCD Screen
Type and Size :
49" LVDS
Max. Resolution :
1920x1080
Pixel Pitch :
0.559 mm x 0.559 mm
Max Color :
16.7 M
Brightness (cd/m2) :
450cd
Contrast Ratio :
1000/1
Viewing Angle :
178°(H),178°(V)
Back Light MTBF :
50,000 hours
Touch Screen :
Capacitive Touchscreen
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
10 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Front Frame :
Metal
Weight :
Variable according to screen size
Dimensions :
(WxHxD) Variable by screen size
Mounting :
Mobile / Fixed on Ground
Order Code
CPU :
J1900, i5, i7
PSU :
AC - 220VAC
RAM :
R4, R8, R16
HDD :
HDD 500GB(OPS), SSD64, SSD128, SSD256
Wifi :
Optional
