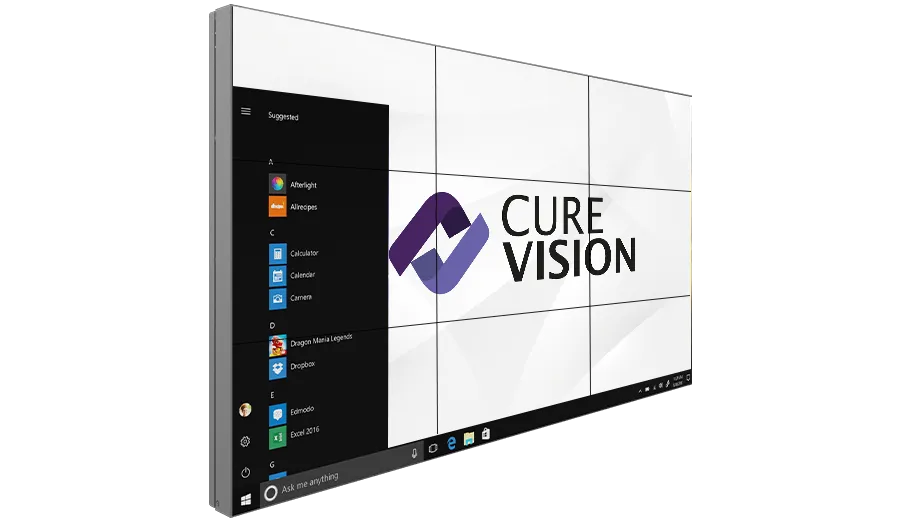

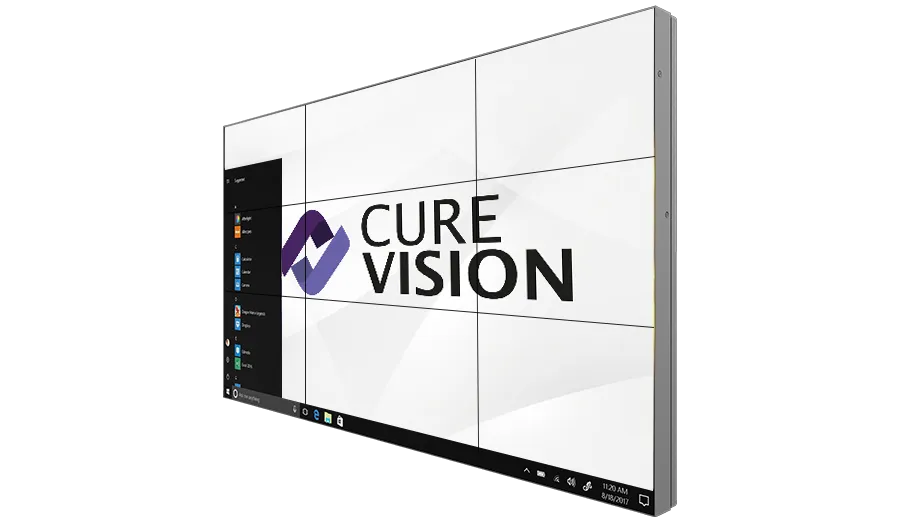

VW-349 Series

Unlock the Power of Visual Communication

CureVision's Videowall Solution empowers hospitals to communicate effectively and efficiently, transforming how information is shared with patients.

Key Advantages:

Dynamic Expansion: Seamlessly combine multiple CureVision screens to create a videowall of any desired size, providing a versatile solution for diverse hospital spaces.

Enhanced Visual Clarity: Elevate image quality with higher resolution and clarity by utilizing multiple screens, ensuring a superior visual experience for healthcare professionals and patients.

Eliminate Blur: Display each screen at its optimal resolution, eliminating blur and delivering sharp, clear visuals for impactful communication.

Features:

High-Resolution Imaging: Achieve a higher quality image through CureVision's Videowall Solution, enhancing the overall visual experience within hospital environments.

Individual Screen Resolution: By displaying each screen at its resolution, the solution ensures that each pixel contributes to a clear and detailed image, eliminating distortion.

User-Friendly Hanger System: Simplify installation and adjustment with an easy-to-use and interoperable hanger system, offering a seamless setup process for hospital staff.

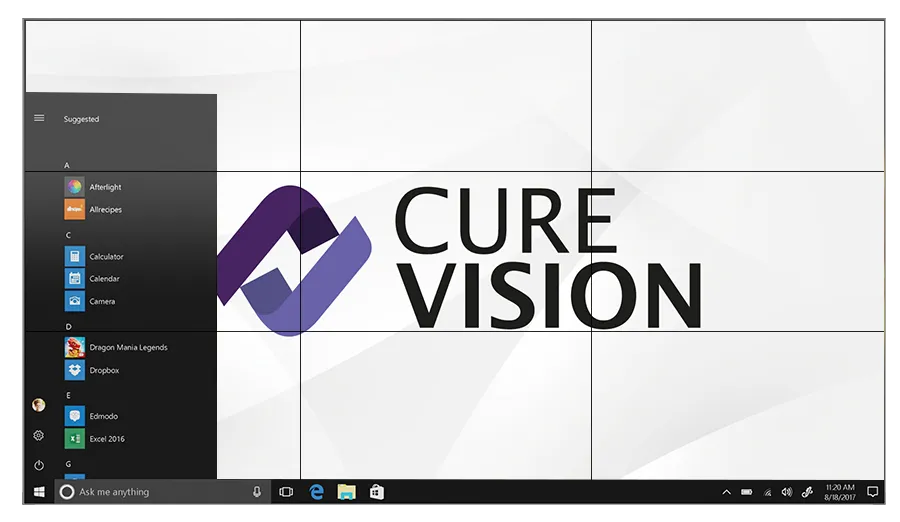

Desired Matrix and High Resolution Image
Desired Matrix and High Resolution Image
Self-Resolution Display on Each Screen
Self-Resolution Display on Each Screen

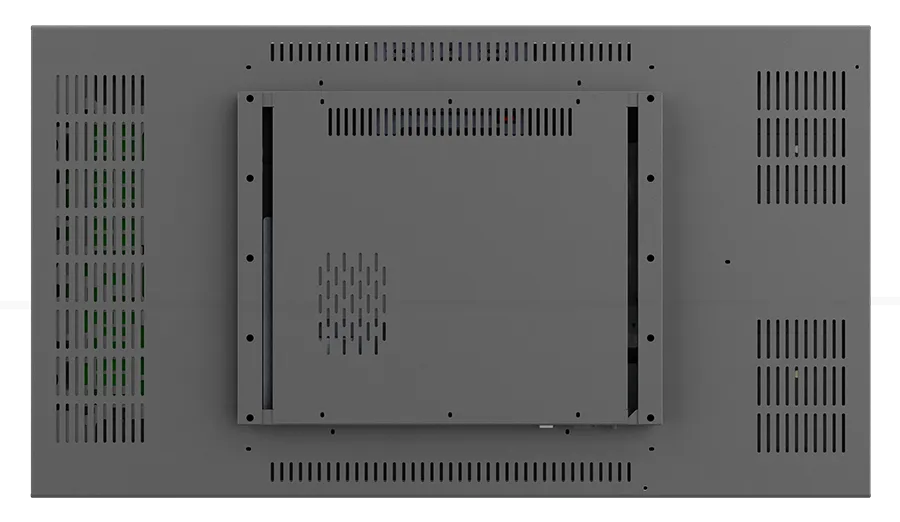

User Serviceable Hanger System
User Serviceable Hanger System

Sectors

Technical Specifications

System
CPU :
Intel® Icore i5/i7
Cache :
By CPU
Memory :
2x DDR4 2133 MHz / 32GB Max
Video RAM :
Intel Gen9 Graphics
Control :
Intel® H110
Watchdog Timer :
255 Level Reset
System Fan :
N.A.
I/O
Serial Port :
2 x RS-232/422/485
USB Port :
2 x USB 2.0 - 1 x PS2 K/B and Mouse
LAN :
1 x LAN Realtek Gigabit Ethernet
Audio :
Line in & out (AC’97 codec audio)
Expansion Slot :
1 x PCIex16, 1xPCIe x1, 3xPCI, 1xPCIe x4, 1xMsata
Data Storage
Memory :
1 TB
HDD / Type :
Vibration Resistant Slot 2.5 ”(500 GB HDD)
SSD :
1TB
Feed
Input :
110 / 220VAC
Extra Video Output
Type :
HDMI
Max. Resolution :
1920x1080
LCD Screen
Type and Size :
49" LVDS
Max. Resolution :
1920x1080
Pixel Pitch :
0.297mm x 0.297mm
Max Color :
16.7 M
Brightness (cd/m2) :
500/700cd
Contrast Ratio :
700/1
Viewing Angle :
178°(H),178°(V)
Back Light MTBF :
50,000 hours
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Weight :
Variable according to screen size (1—5 kg)
Dimensions :
(WxHxD) Variable by screen size
Mounting :
Panel / Wall Mount
Order Code
CPU :
i5, i7
PSU :
AC - 220VAC
RAM :
R4, R8, R16
HDD :
1 TB
Wifi :
N.A

Support

Please contact us for information about the products or for technical support.
