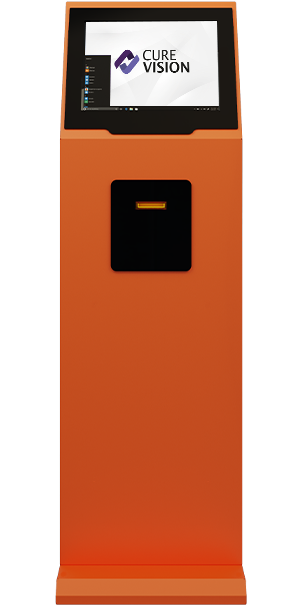

R-317 Series

Streamlining Queue Management and Self-Service Operations

CureVision Kiosk is a comprehensive, sophisticated system that seamlessly supports Queue Management and Self-Service Operations. It offers seamless integration with one-dimensional and two-dimensional barcode readers and hardware platforms such as Magstripe, Contact Chip, RFID, and Memory Card readers. Additionally, the kiosk features a built-in thermal printer for efficient production of queue slips and tickets. Creating a stylish and ergonomic design that can be customized with your company's logo and colour, CureVision Kiosk meets operational needs. It leaves a lasting impression on clients, adding a sense of prestige to your business.

Key Features:

High-Resolution 16:9 Wide Format Upright LCD Display: Choose from screen options of 21", 19", and 17" for a high-resolution display, ensuring clarity and visibility for users.

Capacitive Touch Technology: The screen features capacitive touch technology, providing a durable and user-friendly interface that is resistant to breakage and scratches.

Fanless Intel® Celeron™ Processor, Industrial Motherboard: Equipped with a fanless Intel® Celeron™ processor and an industrial motherboard, the kiosk ensures reliable and efficient performance.

OmniDirectional Internal Barcode and QRCode Reader: The kiosk incorporates an omnidirectional internal barcode and QRCode reader, facilitating quick and accurate scanning for various applications.

2.4'' Thermal Receipt Printer: The built-in thermal receipt printer has a long life and auto-cutter feature, ensuring smooth and reliable printing operations.

Contactless and Contact Smart Card Reader: Supporting both contactless and contact smart card reading, the kiosk provides versatility in user interaction and transactions.

Space-Saving Front Cover Design: The front cover design enhances serviceability and paper replacement convenience, eliminating the need to open a cover behind it and optimizing space usage.

Liquid-Contact Protected Screen: The kiosk's screen is designed to resist liquid contact, ensuring durability and reliability even in challenging environments.

Vandal-Resistant Body: With a robust and vandal-resistant body, CureVision Kiosk ensures longevity and resilience, standing up to various operating conditions.

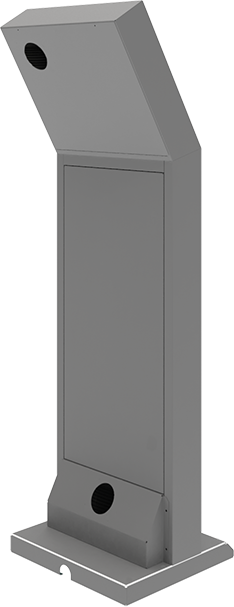

Vandal Resistance
Vandal Resistance

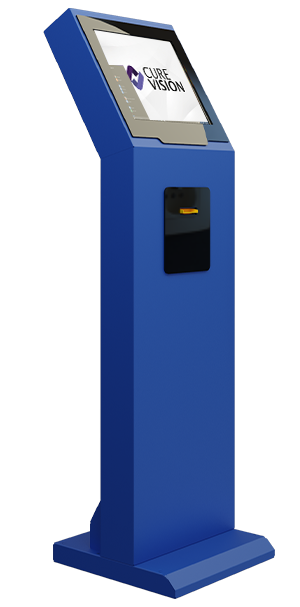

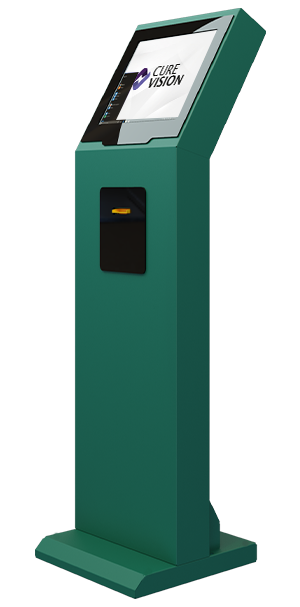

Customizing with Corporate Color and Logo
Customizing with Corporate Color and Logo
Kiosk in Desired Configuration
Kiosk in Desired Configuration

Sectors

Technical Specifications

System
CPU :
Intel® Celeron™ Processor J1900 Low Power Fanless
Cache :
2MB
Memory :
2 x DDR3 SoDIMM max. 4GB / 8GB
Video RAM :
Max128 MB shared memory
Control :
N.A.
Watchdog Timer :
255 Level Reset
System Fan :
1 x 4cm / 10CFM
I/O
Serial Port :
3 x RS-232 ports
Parallel Port :
N.A.
USB Port :
4 x USB 2.0
KB / MS :
1 x PS2 K/B and Mouse
LAN :
1 x LAN Realtek Gigabit Ethernet,
Wireless LAN :
802.11 b / g (Optional)
Audio :
Line in & out (AC’97 codec audio)
Expansion Slot :
PCIe/MiniPCIe
Readers :
2d barcode reader
Writer :
Thermal Writer
Data Storage
HDD / Type :
2.5” HDD/SSD
Feed
Input :
110 / 220VAC veya 12 / 24VDC / Industrial Type Max 250W
Extra Video Output
Type :
HDMI
Max. Resolution :
1600 x 1200
LCD Screen
Type and Size :
17" / 4:3
Max. Resolution :
1280x1024, XGA
Pixel Pitch :
0.297mm x 0.297mm
Max Color :
16.7 M
Brightness (cd/m2) :
350
Contrast Ratio :
1000/1
Viewing Angle :
160°(H),160°(V)
Back Light MTBF :
50,000 hours
Touch Screen :
17" Touch-Resistive
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Front Frame :
N.A
Weight :
Variable according to screen size (1—5 kg)
Dimensions :
(WxHxD) Variable by screen size
Mounting :
Floor Standing
Order Code
CPU :
J1900
PSU :
AC110/220, DC12/24
RAM :
R4, R8
HDD :
HDD 320GB, SSD32, SSD64
Wifi :
Optional
Writer :
Thermal Writer
Barcode Reader :
2d barcode reader

Support

Please contact us for information about the products or for technical support.
