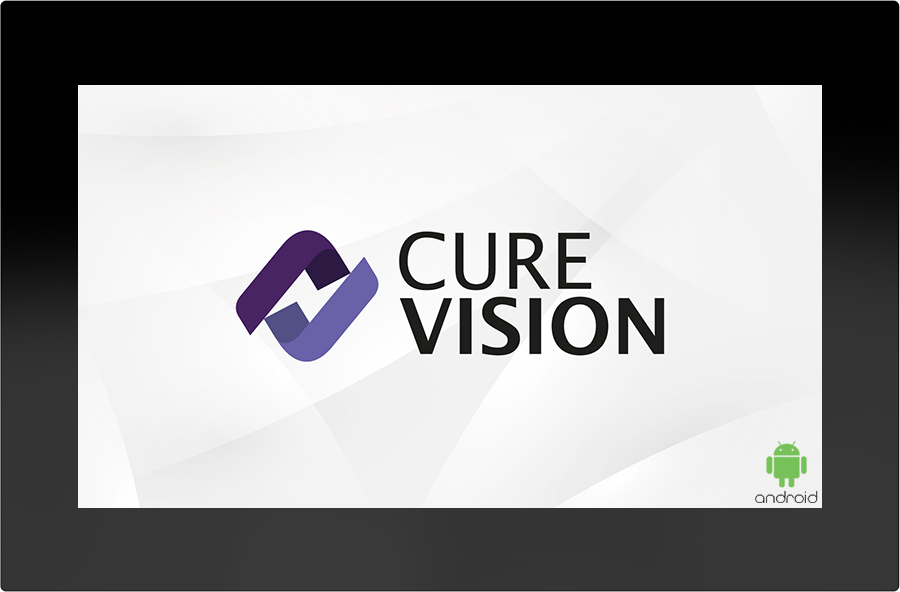

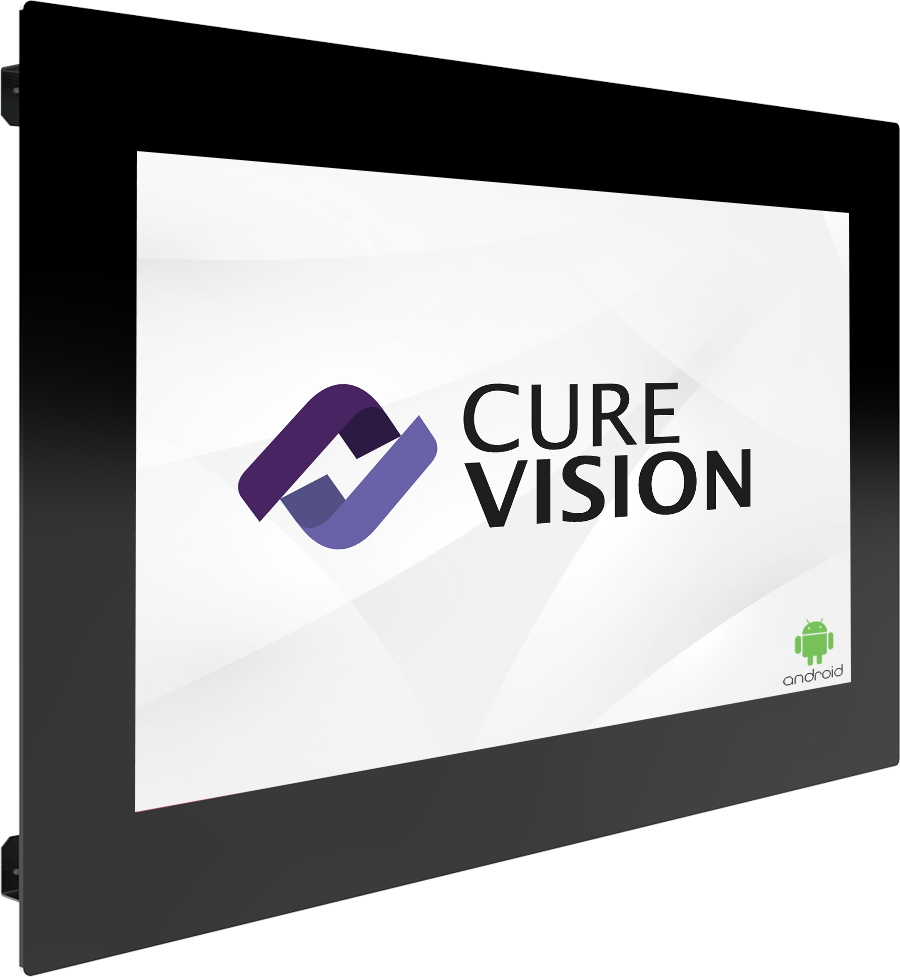

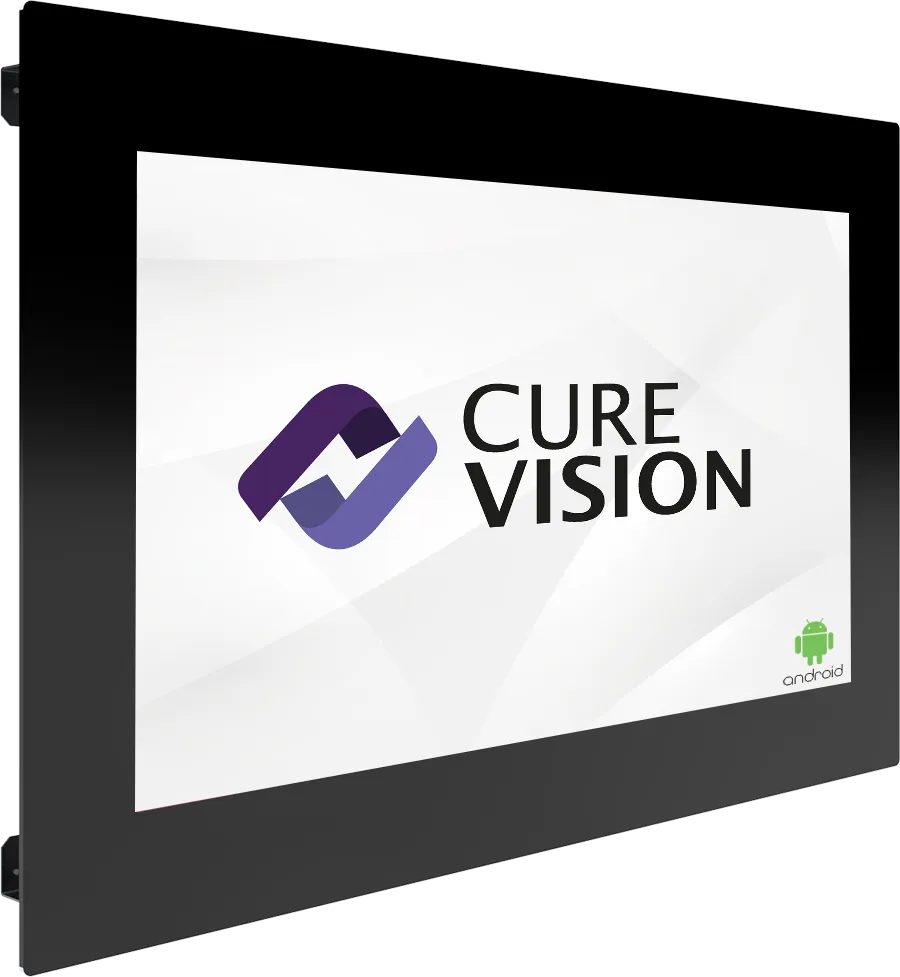

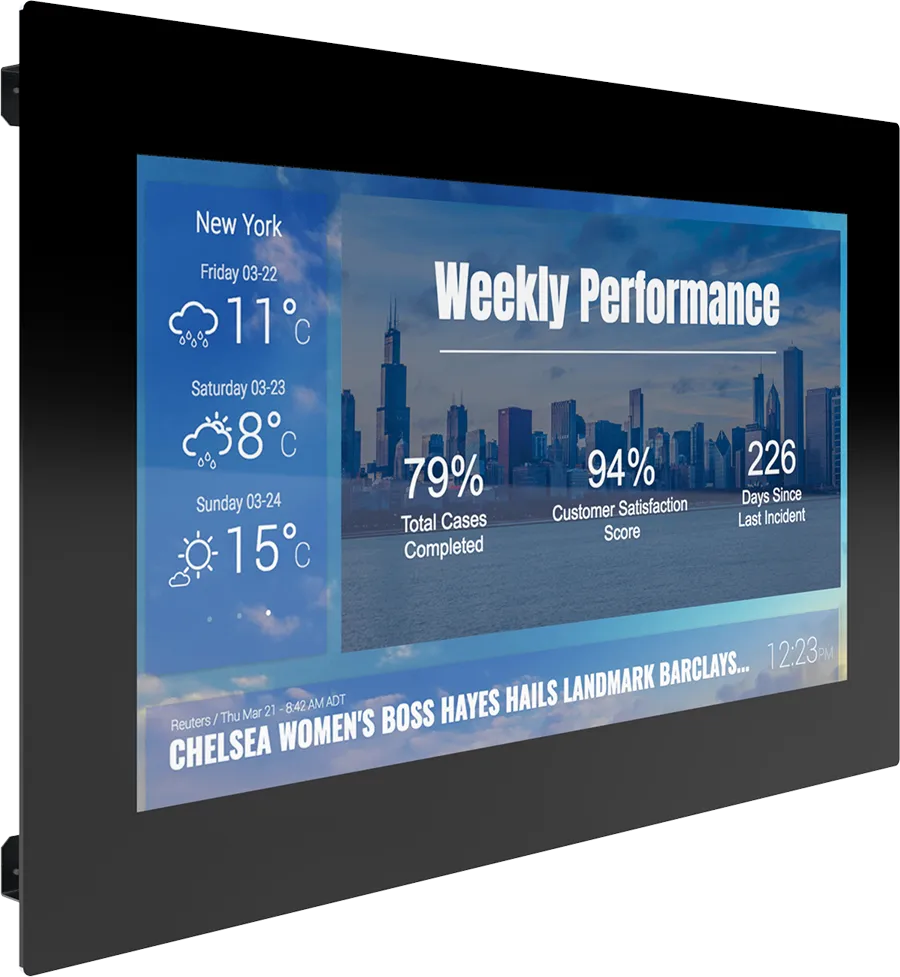

DPC-327 AND Series

27'' Professional Information Display

CureVision's DPC-327 AND Series Professional Information Displays stand at the forefront of innovation, representing trouble-free, maintenance-free devices meticulously crafted for digital broadcast systems. Engineered to surpass performance and durability expectations, these displays elevate visual communication in healthcare environments.

Key Features:

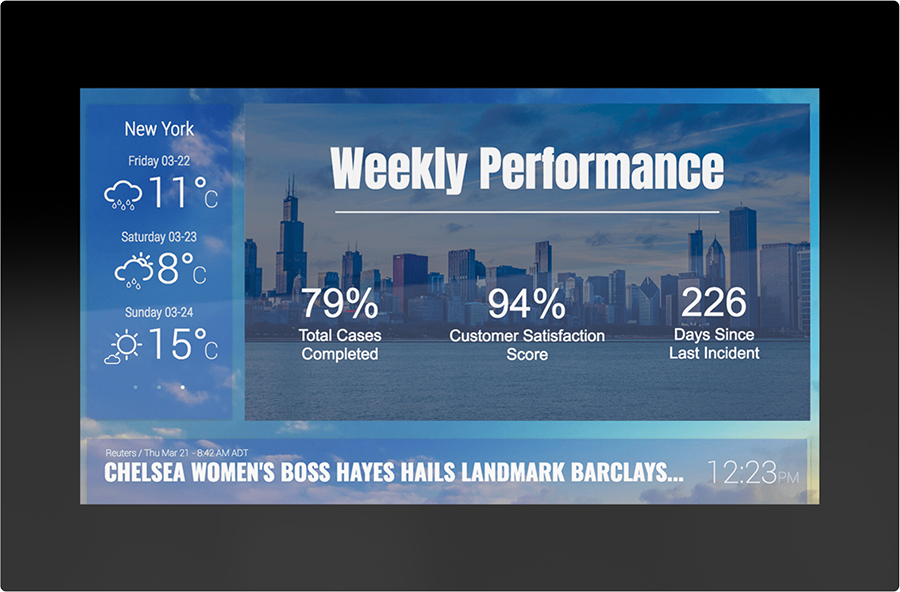

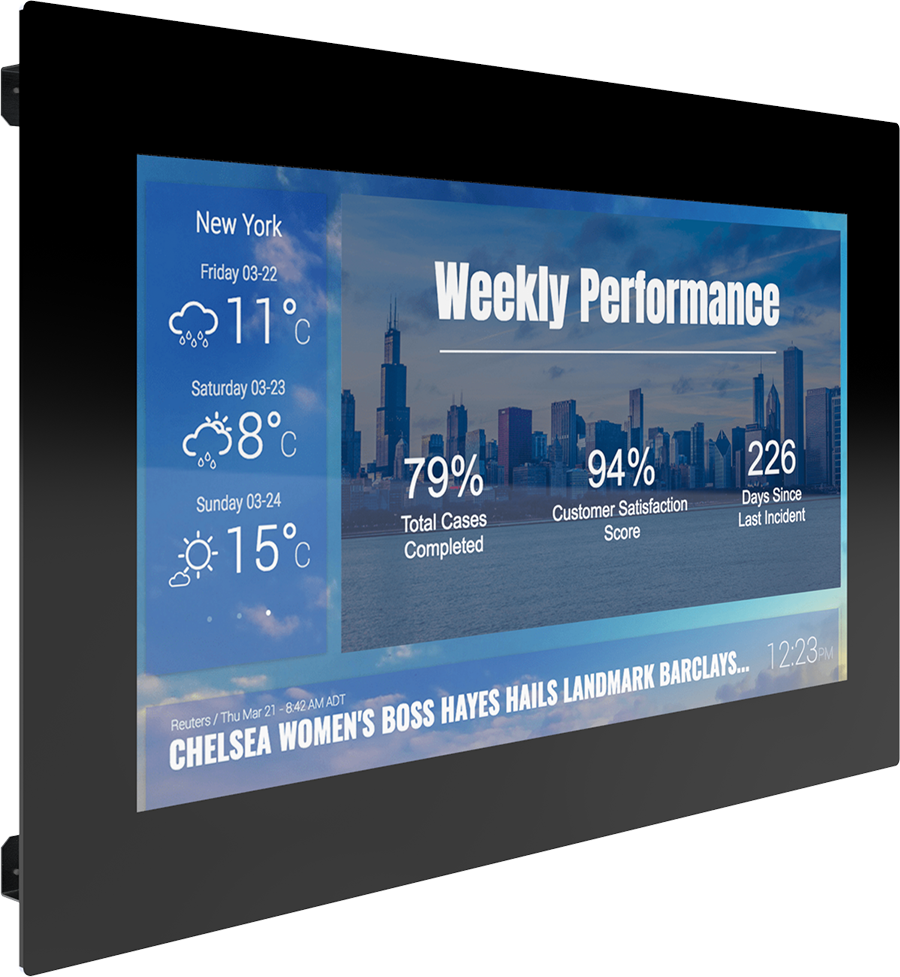

Attention-Captivating Visuals: Immerse your audience in captivating communication with vibrant colours, eye-catching images, dynamic videos, and unique fonts, ensuring an impactful and memorable viewing experience.

Versatile Media Support: Embrace flexibility with support for a wide array of digital media formats, including images, videos, animations, and motion graphics, catering to diverse communication needs within the healthcare setting.

Remote Troubleshooting: Ensure seamless operation with the convenience of remote connection capabilities, allowing swift problem analysis and solution implementation for uninterrupted performance.

Anti-Glare Unbreakable Glass: Experience clarity with 3mm. Anti-glare unbreakable glass provides a crystal-clear display while offering robust protection against potential damage, enhancing longevity and reliability.

Corporate Color Options: Customize your displays to harmonize with the corporate identity of your healthcare institution, fostering a cohesive and professional visual representation.

Robust Stainless Steel Construction: Built with a stainless steel body boasting shockproof properties, these displays withstand the rigours of healthcare environments, ensuring durability and resilience under demanding conditions.

Dust and Moisture Protection: Equipped with a sensitive filter, these displays offer adequate protection against dust and moisture, maintaining optimal performance even in challenging environmental conditions.

Flexible Installation Options: Whether wall-mounted, ceiling-mounted, or built-in, these displays provide versatile installation choices, adapting seamlessly to the unique layout of your healthcare facility.



Custom Design
Custom Design
Sustainable Product
Sustainable Product
Support with Remote Connection
Support with Remote Connection

Sectors

Technical Specifications

System
Cache :
N.A.
Memory :
2GB
Video RAM :
N.A.
Control :
N.A.
Watchdog Timer :
Support
Android OS :
Android 8.0
Processor :
4x ARM Cortex-A17 @ 1.61 GHz
I/O
Serial Port :
N.A.
USB Port :
2 x USB 2.0
LAN :
1x Lan
Wireless LAN :
802.11 b / g (Optional)
Audio :
Support L/R phone jack and 10W / 8Rx2
Data Storage
EEMC :
16GB Flash
HDD / Type :
N.A
SSD :
N.A
Feed
Input :
220VAC
Extra Video Output
Type :
HDMI/DP/DVI/VGA (Optional)
Max. Resolution :
1920x1080(2560x1600 Optional)
LCD Screen
Type and Size :
27" LVDS
Max. Resolution :
1920x1080
Pixel Pitch :
0.311mm x 0.311mm
Max Color :
16.7 M
Brightness (cd/m2) :
300cd
Contrast Ratio :
1000/1
Viewing Angle :
160°(H),160°(V)
Back Light MTBF :
50,000 hours
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Front Frame :
Metal Frame / Glass (Optional)
Weight :
Variable according to screen size (1—5 kg)
Dimensions :
Variable by screen size
Mounting :
Surface Mount / Built-in
Order Code
CPU :
4x ARM Cortex-A17 @ 1.61 GHz
PSU :
AC - 220VAC
RAM :
R2
HDD :
EEMC 16GB Flash
Wifi :
Optional
