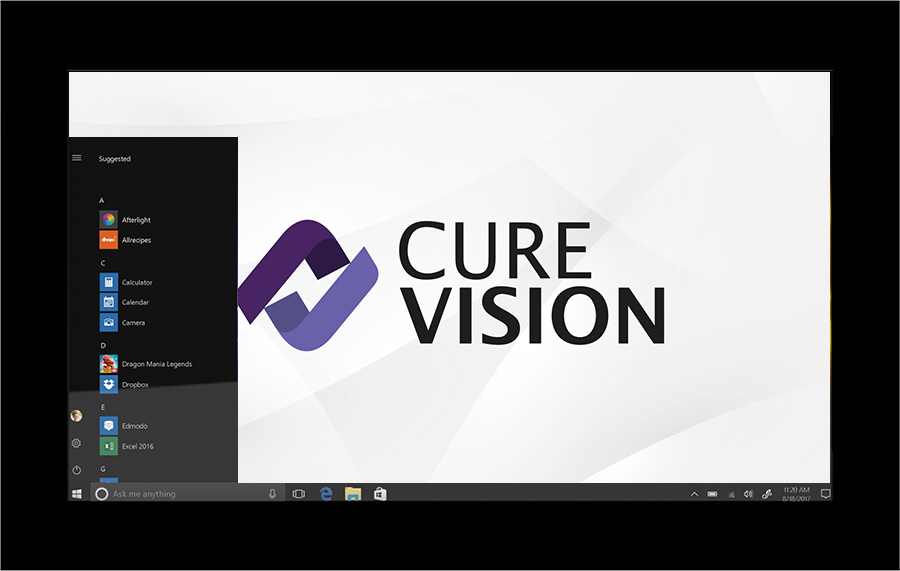

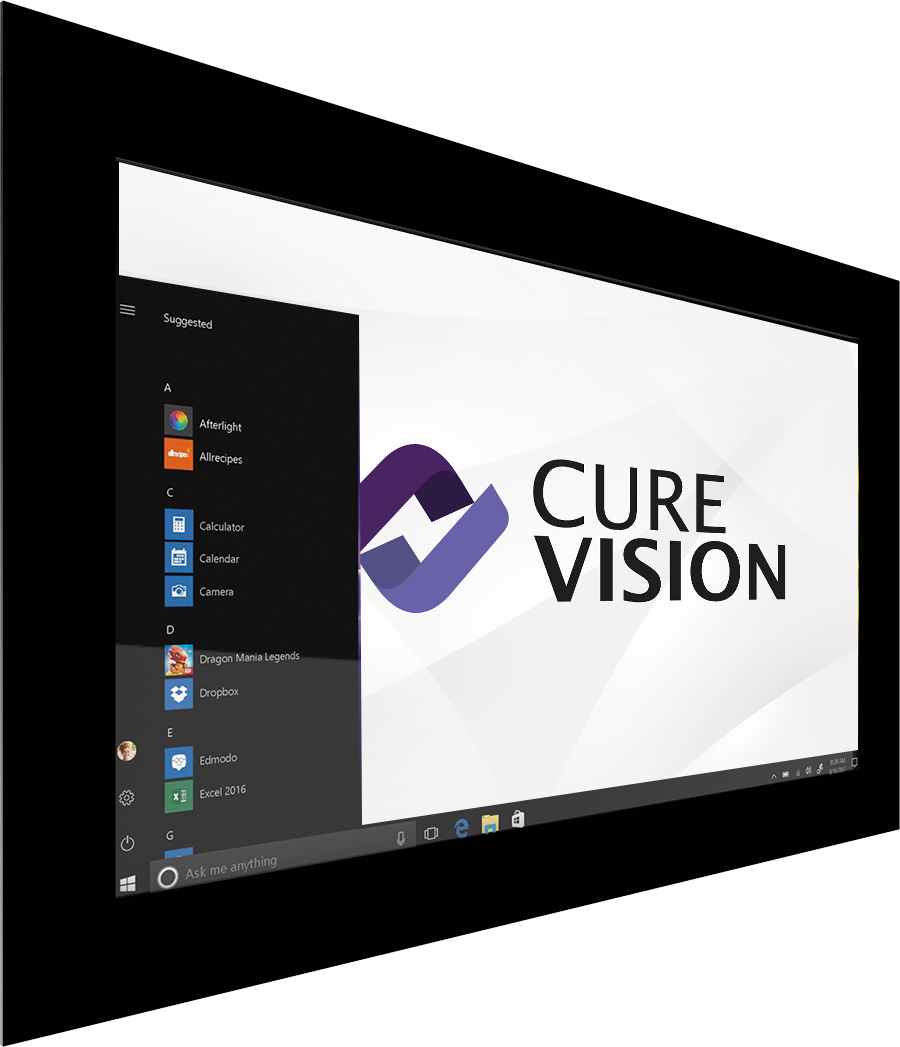

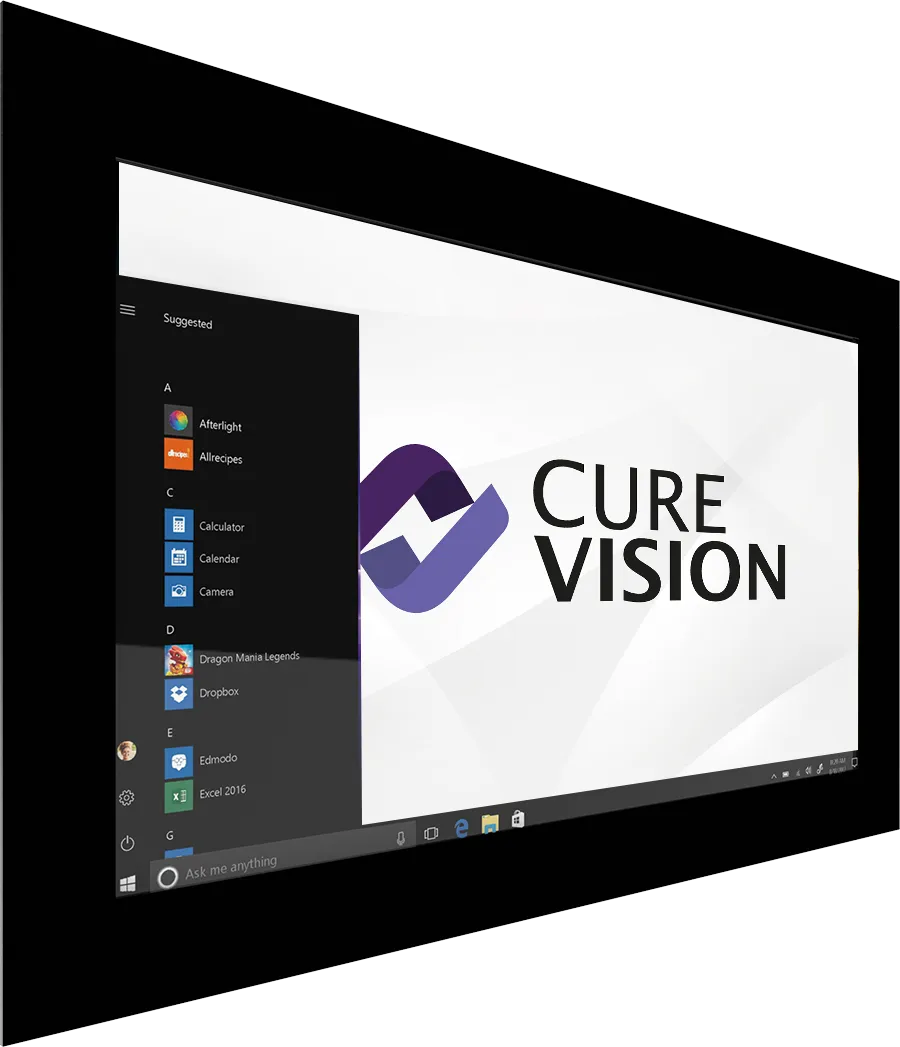

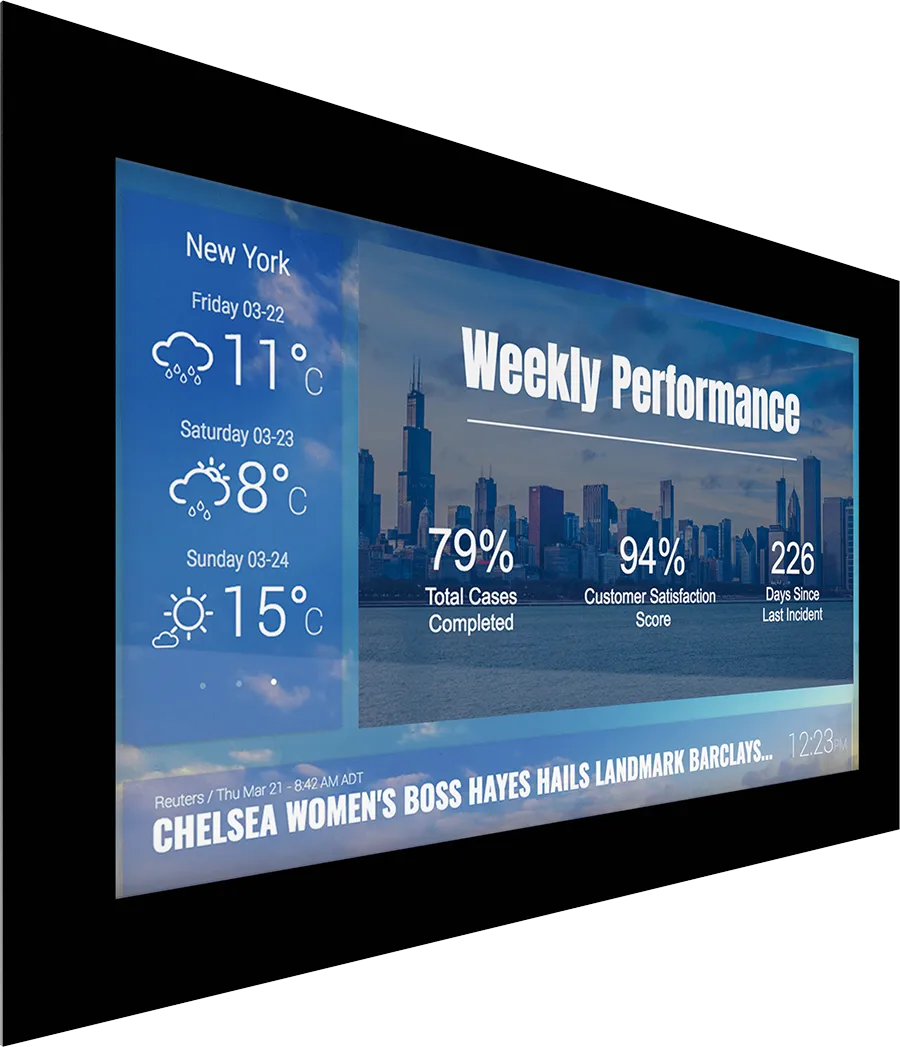

DPC-343 Series

43'' Professional Information Display

CureVision's DPC-343 Series Professional Information Displays stand at the forefront of innovation, representing trouble-free, maintenance-free devices meticulously crafted for digital broadcast systems. Engineered to surpass performance and durability expectations, these displays elevate visual communication in healthcare environments.

Key Features:

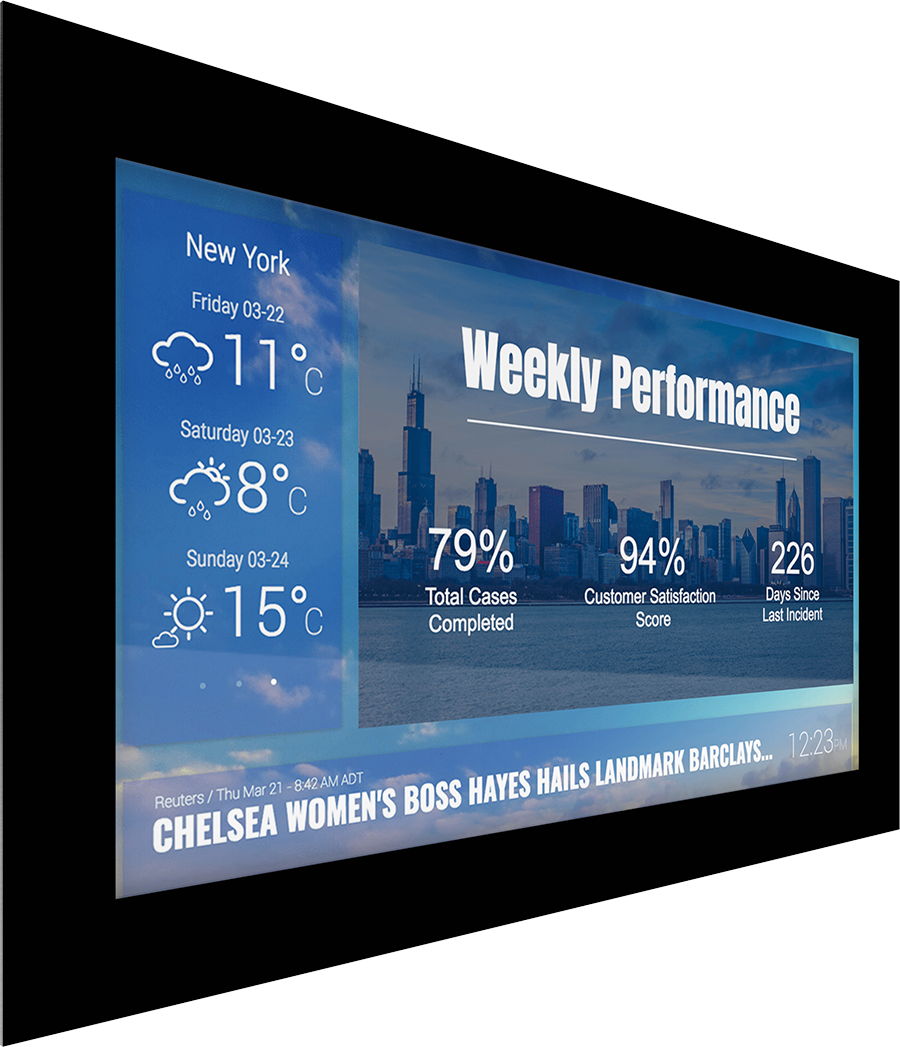

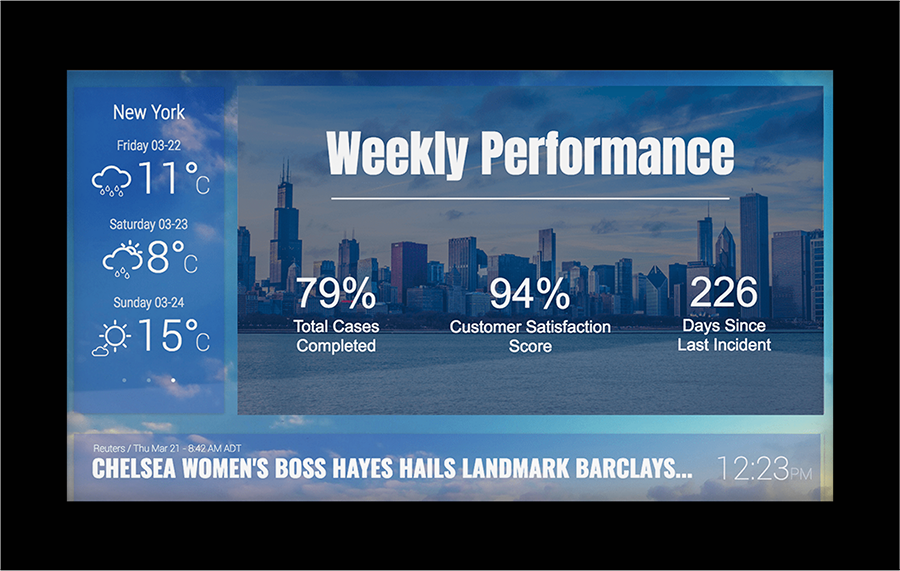

Attention-Captivating Visuals: Immerse your audience in captivating communication with vibrant colours, eye-catching images, dynamic videos, and unique fonts, ensuring an impactful and memorable viewing experience.

Versatile Media Support: Embrace flexibility with support for a wide array of digital media formats, including images, videos, animations, and motion graphics, catering to diverse communication needs within the healthcare setting.

Remote Troubleshooting: Ensure seamless operation with the convenience of remote connection capabilities, allowing swift problem analysis and solution implementation for uninterrupted performance.

Anti-Glare Unbreakable Glass: Experience clarity with 3mm. Anti-glare unbreakable glass provides a crystal-clear display while offering robust protection against potential damage, enhancing longevity and reliability.

Corporate Color Options: Customize your displays to harmonize with the corporate identity of your healthcare institution, fostering a cohesive and professional visual representation.

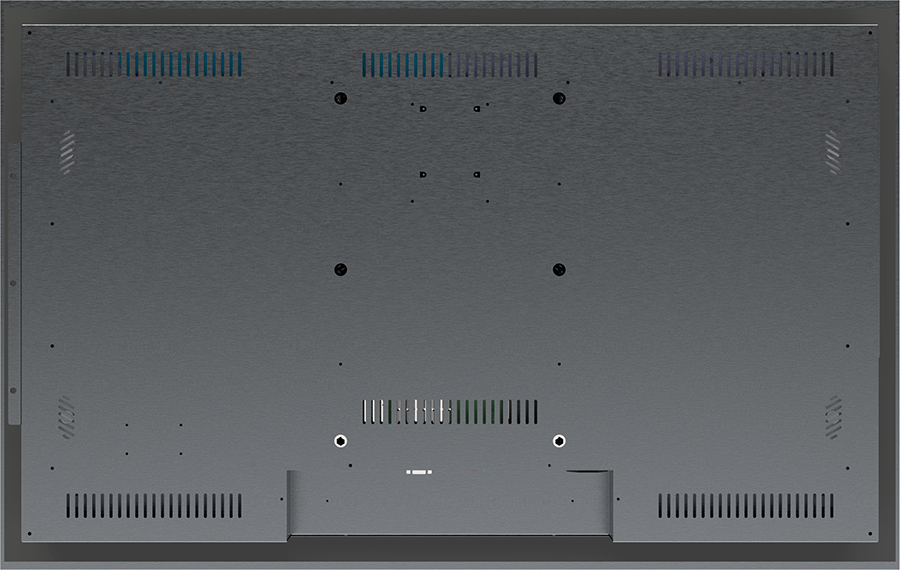

Robust Stainless Steel Construction: Built with a stainless steel body boasting shockproof properties, these displays withstand the rigours of healthcare environments, ensuring durability and resilience under demanding conditions.

Dust and Moisture Protection: Equipped with a sensitive filter, these displays offer adequate protection against dust and moisture, maintaining optimal performance even in challenging environmental conditions.

Flexible Installation Options: Whether wall-mounted, ceiling-mounted, or built-in, these displays provide versatile installation choices, adapting seamlessly to the unique layout of your healthcare facility.

Custom Design
Custom Design
Sustainable Product
Sustainable Product
Support with Remote Connection
Support with Remote Connection

Sectors

Technical Specifications

System
CPU :
Intel® Celeron j1900 / Intel® Icore i5/i7
Cache :
2nd Level depends on CPU
Memory :
4GB
Video RAM :
Max 128 MB shared memory
Control :
Intel® Soc / QM77
Watchdog Timer :
255 Level Reset
System Fan :
N.A.

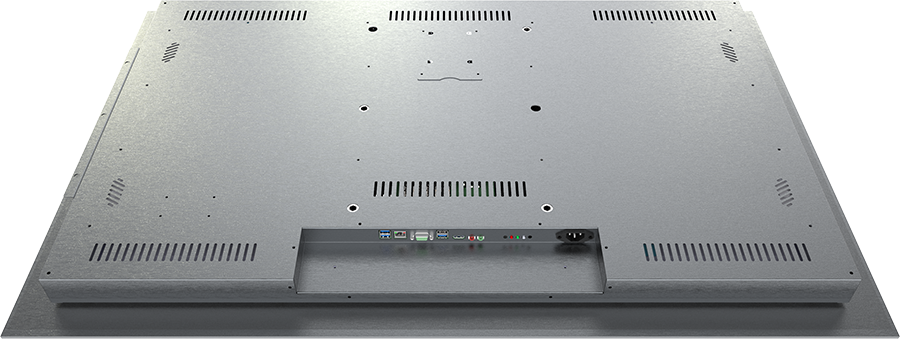

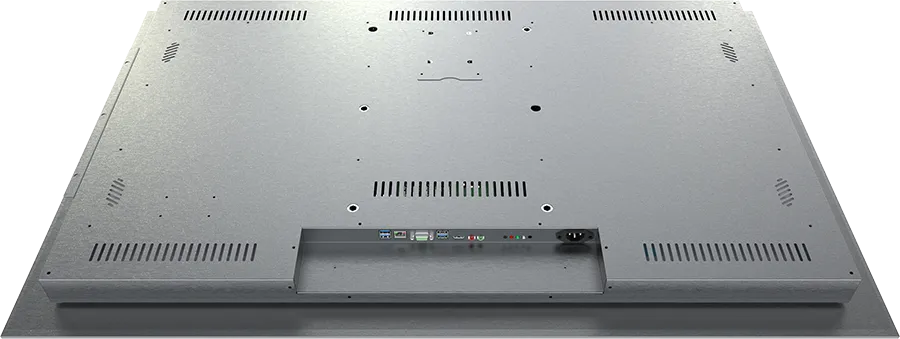

I/O
Serial Port :
N.A.
USB Port :
2 x USB 2.0
LAN :
1 x LAN Realtek Gigabit Ethernet
Audio :
3W Stereo Output / 5W Speaker (Optional)
Data Storage
HDD / Type :
Vibration Resistant Slot 2.5 ”(500 GB HDD)
SSD :
64 GB / 128GB / 256 GB
Feed
Input :
220VAC or 24VDC
Extra Video Output
Type :
HDMI (Optional)
Max. Resolution :
1920x1080(Optional)
LCD Screen
Type and Size :
43" LVDS
Max. Resolution :
1920x1080
Pixel Pitch :
0.311mm x 0.311mm
Max Color :
16.7 M
Brightness (cd/m2) :
450cd
Contrast Ratio :
1000/1
Viewing Angle :
160°(H),160°(V)
Back Light MTBF :
50,000 hours
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing
Case :
Heavy-Duty Metal Case
Front Frame :
Metal Frame / Glass (Optional)
Weight :
Variable according to screen size (1—5 kg)
Dimensions :
(WxHxD) Variable by screen size
Mounting :
Surface Mount / Built-in
Order Code
CPU :
J1900, i5, i7
PSU :
AC - 220VAC
RAM :
R4
HDD :
HDD 500GB(OPS), SSD64, SSD128, SSD256
Wifi :
N.A

Support

Please contact us for information about the products or for technical support.
