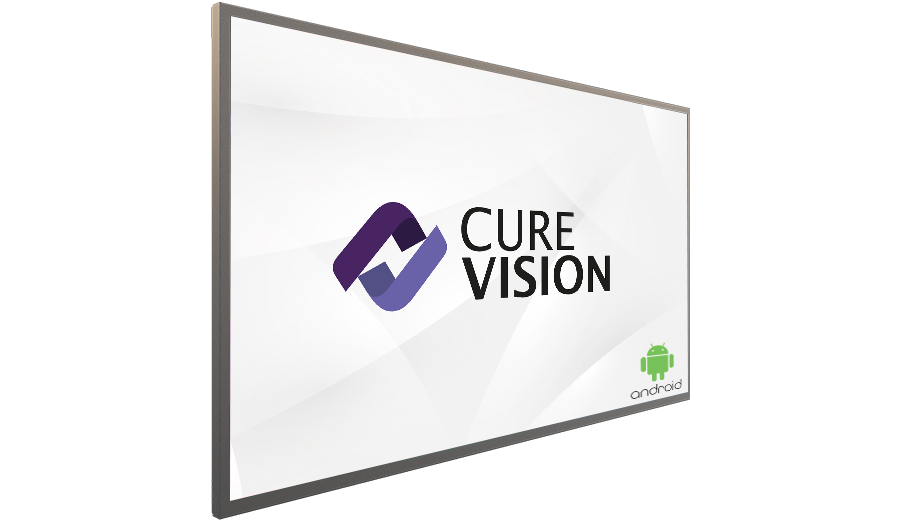

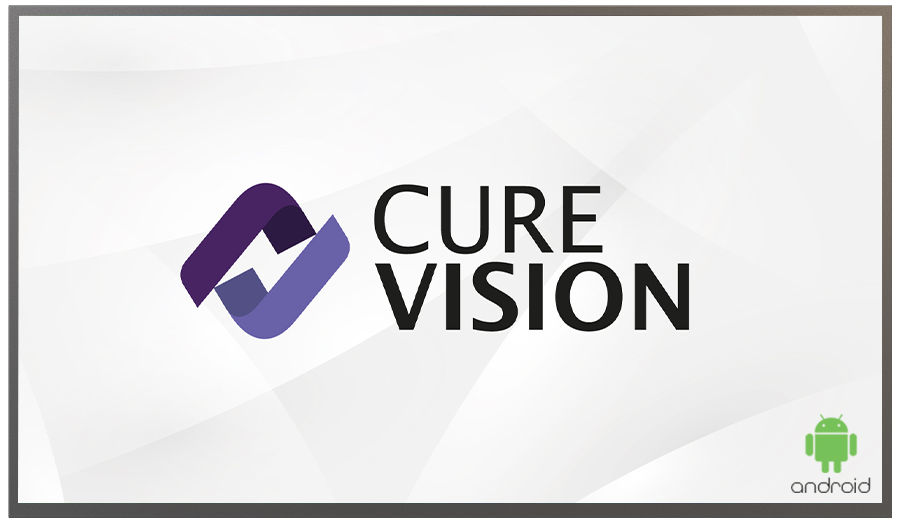

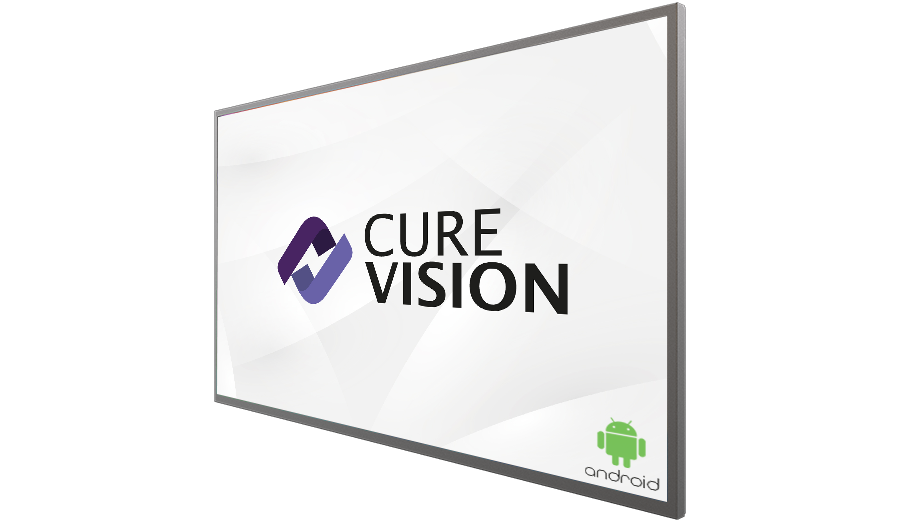

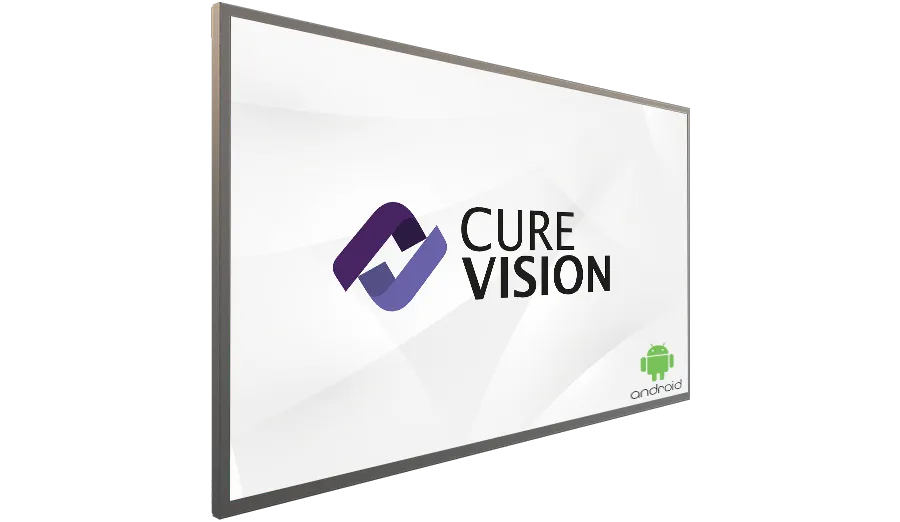

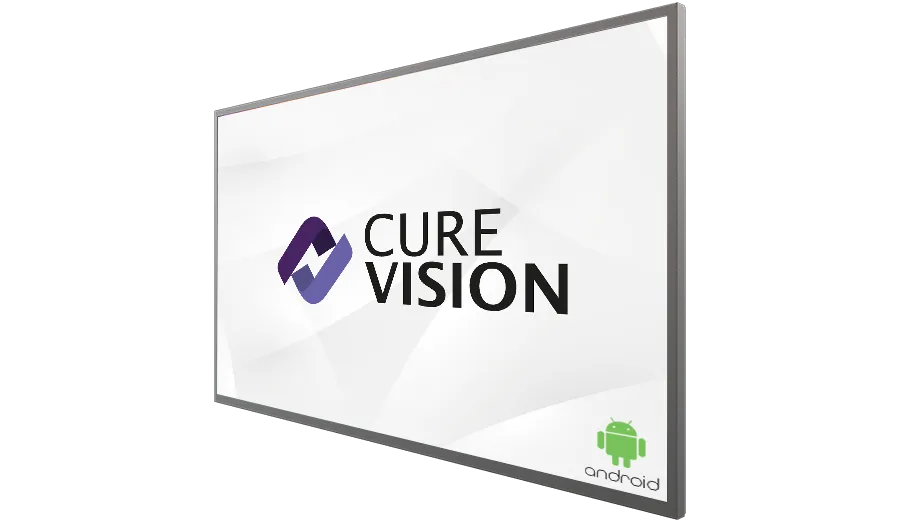

DPC-365 AND Series

65'' Professional Information Display

CureVision's DPC-365 AND Series Professional Information Displays stand as impeccable, maintenance-free solutions designed to meet digital broadcast systems' demands seamlessly. Engineered for superior performance and durability, these displays ensure trouble-free operation and a lasting impact.

Key Features:

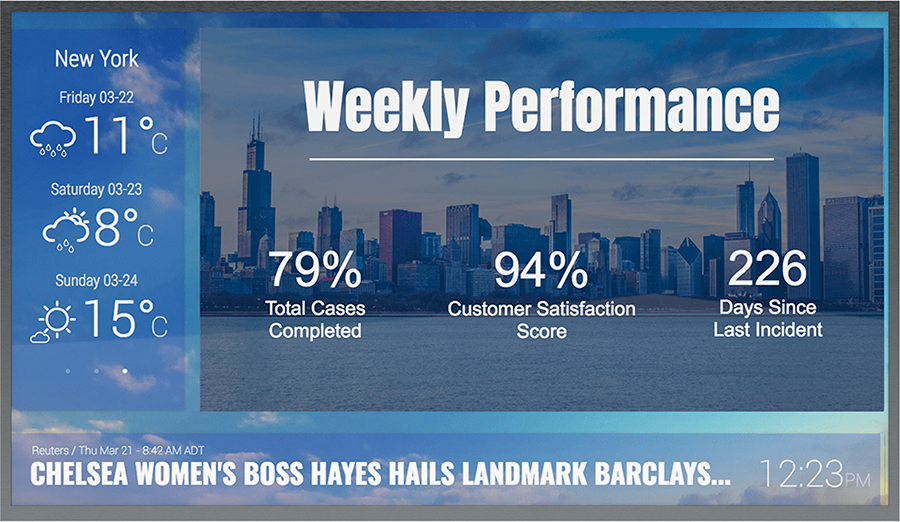

Attention-Grabbing Visuals: Captivate your audience with vibrant colours, eye-catching images, dynamic videos, and unique fonts, making CureVision's displays an attractive centrepiece for effective communication.

Versatile Media Support: Supports a wide range of digital media formats, including images, videos, animations, and motion graphics, providing flexibility for diverse communication needs within healthcare institutions.

Remote Troubleshooting: Enable remote connection for efficient problem analysis and solution implementation, ensuring minimal downtime and hassle-free maintenance.

Anti-Glare Unbreakable Glass: Equipped with 3mm. Anti-glare unbreakable glass, these displays guarantees clear visibility and protection against potential damage, ensuring longevity and reliability.

Corporate Color Options: Customize your display to align with your institution's branding and aesthetics, fostering a cohesive and professional visual identity.

Robust Construction: The stainless steel body, coupled with shockproof properties, ensures durability and resilience, making CureVision's displays suitable for the demanding healthcare environment.

Dust and Moisture Protection: Incorporating a sensitive filter, these displays provide adequate protection against dust and moisture, ensuring optimal performance even in challenging conditions.

Flexible Installation Options: Whether wall-mounted, ceiling-mounted, or built-in, these displays offer versatile installation options, adapting to the unique layout of your healthcare facility.

Support with Remote Connection
Support with Remote Connection
Customizing with Corporate Color and Logo
Customizing with Corporate Color and Logo
Durable and Long Lasting
Durable and Long Lasting

Sectors

Technical Specifications

System
Cache :
N.A.
Memory :
2GB
Video RAM :
N.A.
Control :
N.A.
Watchdog Timer :
Support
Android OS :
Android 8.0
I/O
Serial Port :
N.A
USB Port :
2 x USB 2.0
LAN :
1x Lan
Wireless LAN :
802.11 b / g (Optional)
Audio :
Support L/R phone jack and 10W / 8Rx2
Data Storage
Memory :
2GB
EEMC :
16GB Flash
SSD :
N.A
Feed
Input :
220VAC
Extra Video Output
Type :
HDMI (Optional)
Max. Resolution :
1920x1080(Optional)
LCD Screen
Type and Size :
65" LVDS
Max. Resolution :
1920x1080
Pixel Pitch :
0.744mm x 0.744mm
Max Color :
16.7 M
Brightness (cd/m2) :
450cd
Contrast Ratio :
1000/1
Viewing Angle :
178°(H),178°(V)
Back Light MTBF :
50,000 hours
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Front Frame :
Metal Frame / Glass (Optional)
Weight :
Variable according to screen size (1—5 kg)
Dimensions :
(WxHxD) Variable by screen size
Mounting :
Surface Mount / Built-in
Order Code
CPU :
4x ARM Cortex-A17 @ 1.61 GHz
PSU :
AC - 220VAC
RAM :
R2
Wifi :
EEMC 16GB Flash
Bluetooth :
Optional

Support

Please contact us for information about the products or for technical support.
