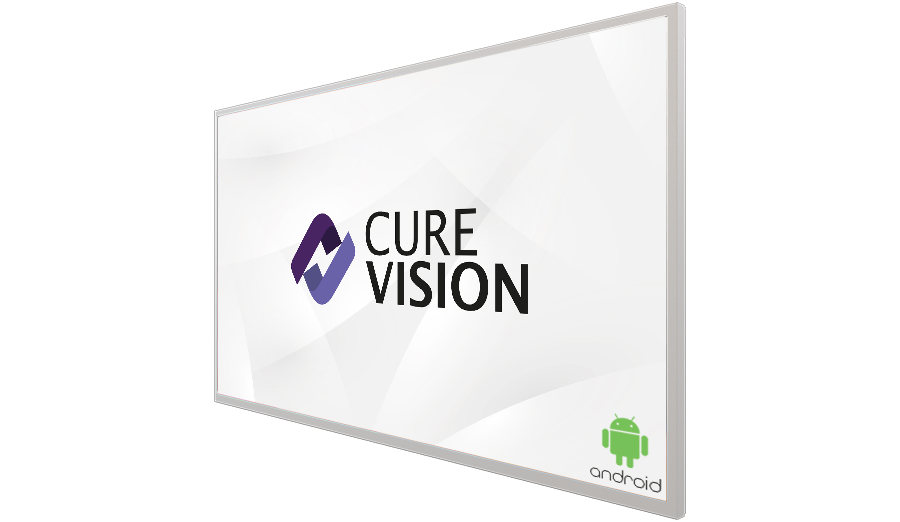

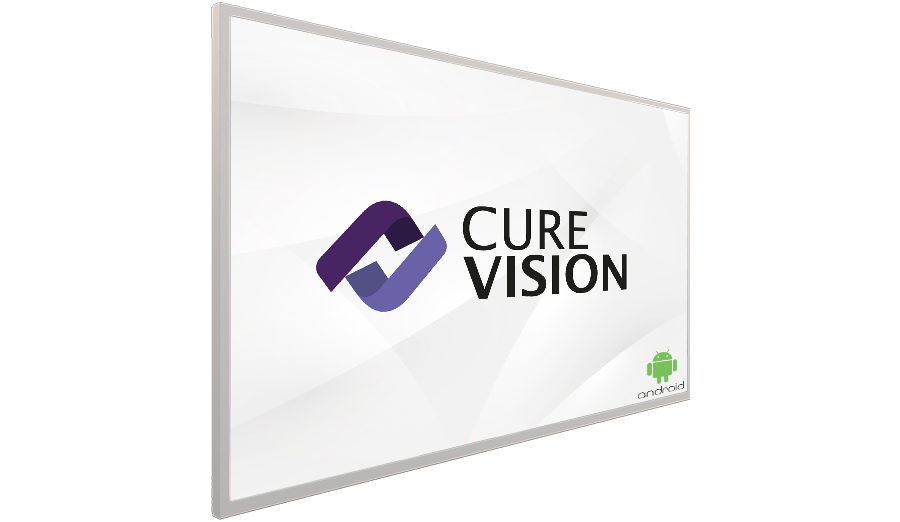

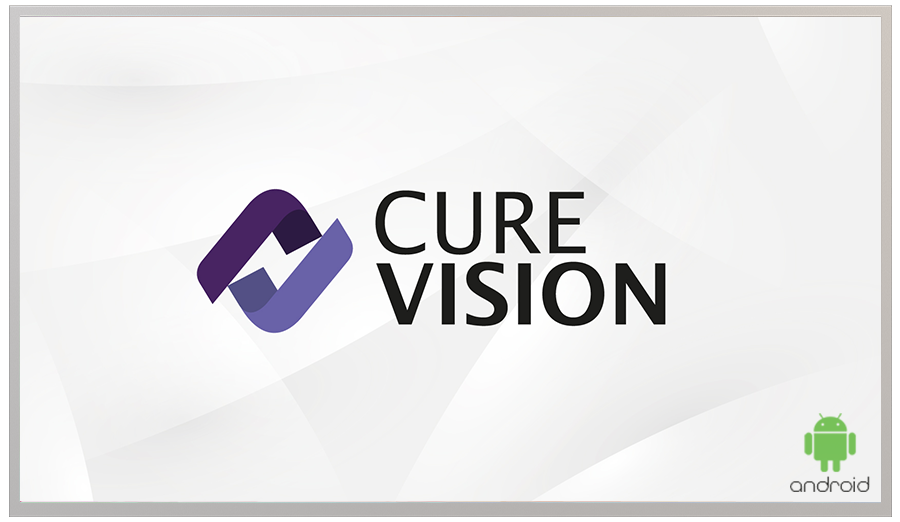

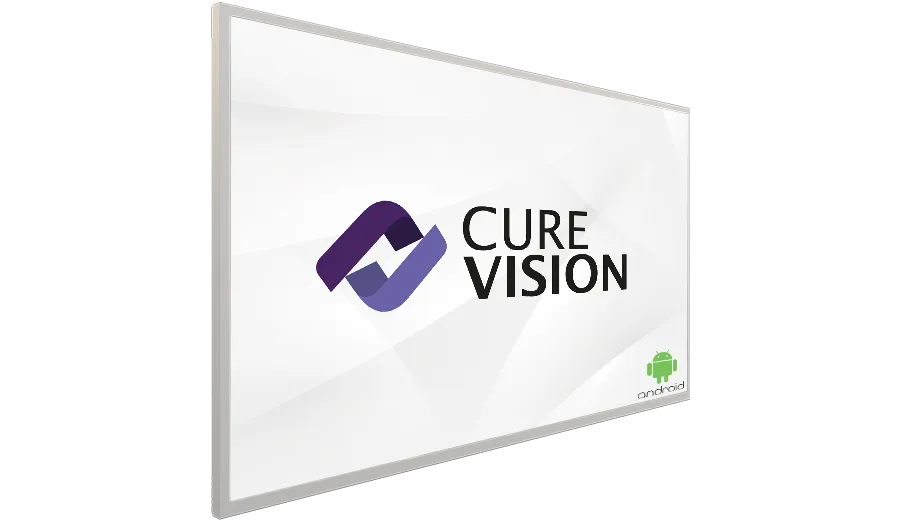

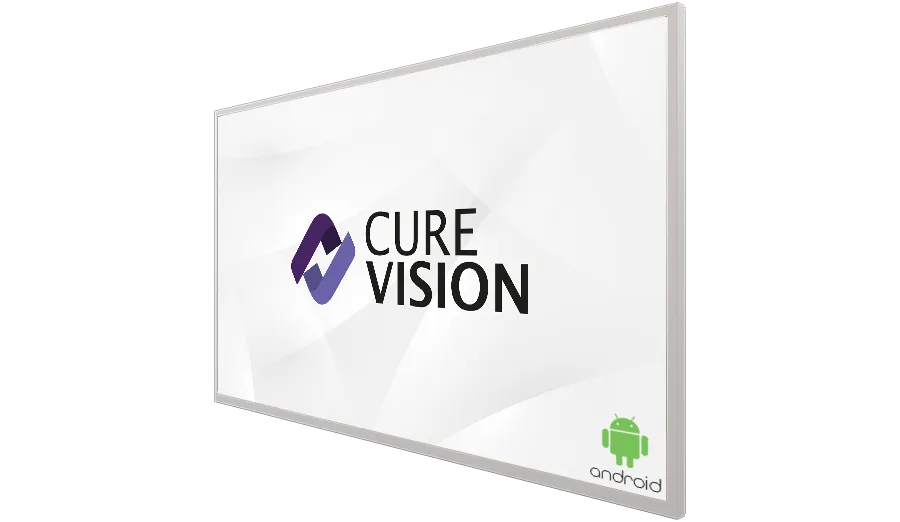

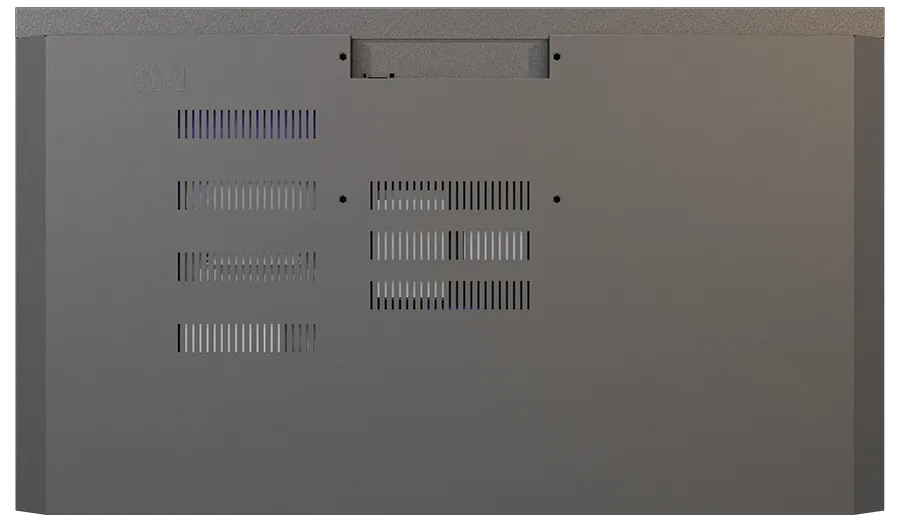

DPC-355 AND Series

55'' Professional Information Display

CureVision's DPC-355 AND Series Professional Information Displays redefine digital broadcast systems' landscape, presenting impeccable, maintenance-free devices that excel in performance and durability. Tailored to meet the stringent demands of modern healthcare institutions, these displays seamlessly integrate vibrant visuals and cutting-edge technology.

Key Features:

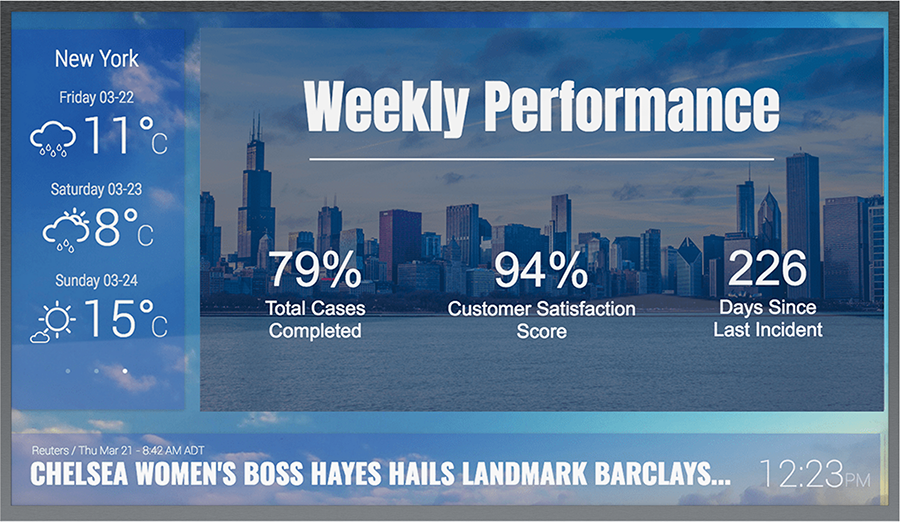

Attention-Grabbing Visuals: With vibrant colours, captivating images, dynamic videos, and unique fonts, CureVision's displays effortlessly command attention, becoming an active focal point for effective communication within healthcare settings.

Versatile Media Support: Embrace various digital media formats, including images, videos, animations, and motion graphics, providing versatility to cater to diverse communication needs in the healthcare environment.

Remote Troubleshooting: Facilitate seamless operation with remote connection capabilities for efficient problem analysis and solution implementation, ensuring optimal performance and reducing downtime.

Anti-Glare Unbreakable Glass: Featuring 4mm. Anti-glare unbreakable glass, these displays ensure clear visibility while providing robust protection against potential damage, guaranteeing longevity and reliability.

Corporate Color Options: Customize your displays to align with the corporate branding of your healthcare institution, creating a cohesive visual identity and professional aesthetic.

Robust Construction: Crafted with a stainless steel body boasting shockproof properties, these displays are designed to withstand the demands of the healthcare environment, ensuring durability and resilience.

Dust and Moisture Protection: Equipped with a sensitive filter, these displays protect against dust and moisture, maintaining optimal performance even in challenging conditions.

Flexible Installation Options: Whether wall-mounted, ceiling-mounted, or built-in, these displays offer versatile installation choices, adapting seamlessly to the unique layout of your healthcare facility.

Sustainable Product
Sustainable Product
Support with Remote Connection
Support with Remote Connection
Customizing with Corporate Color and Logo
Customizing with Corporate Color and Logo

Sectors

Technical Specifications

System
Cache :
N.A.
Memory :
2GB
Video RAM :
N.A.
Control :
N.A.
Watchdog Timer :
Support
Android OS :
Android 8.0
I/O
Serial Port :
N.A
USB Port :
2 x USB 2.0
LAN :
1x Lan
Wireless LAN :
802.11 b / g (Optional)
Audio :
Support L/R phone jack and 10W / 8Rx2
Data Storage
Memory :
2GB
EEMC :
16GB Flash
HDD / Type :
N.A
SSD :
N.A
Feed
Input :
220VAC
Extra Video Output
Type :
HDMI (Optional)
Max. Resolution :
1920x1080(Optional)
LCD Screen
Type and Size :
55" LVDS
Max. Resolution :
1920x1080
Pixel Pitch :
0.630mm x 0.630mm
Max Color :
16.7 M
Brightness (cd/m2) :
450cd
Contrast Ratio :
1000/1
Viewing Angle :
178°(H),178°(V)
Back Light MTBF :
50,000 hours
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Front Frame :
Metal Frame / Glass (Optional)
Weight :
Variable according to screen size (1—5 kg)
Dimensions :
(WxHxD) Variable by screen size
Mounting :
Surface Mount / Built-in
Order Code
CPU :
4x ARM Cortex-A17 @ 1.61 GHz
PSU :
AC - 220VAC
RAM :
R2
HDD :
EEMC16GB Flash
Wifi :
Optional
