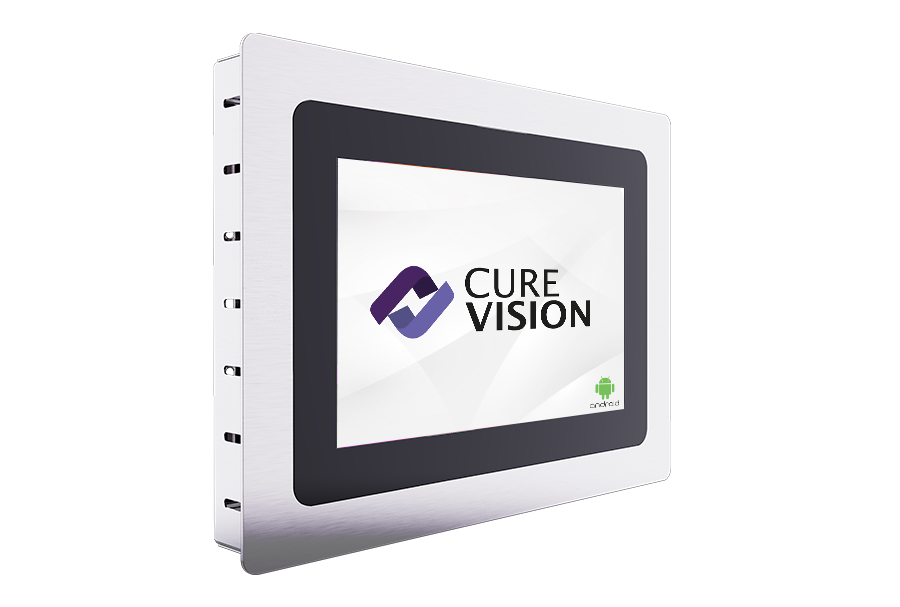

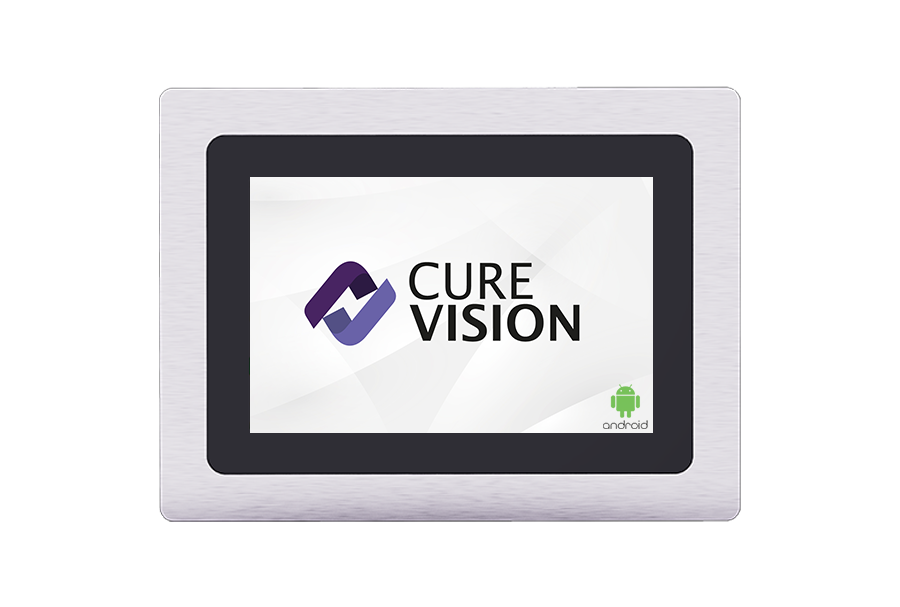

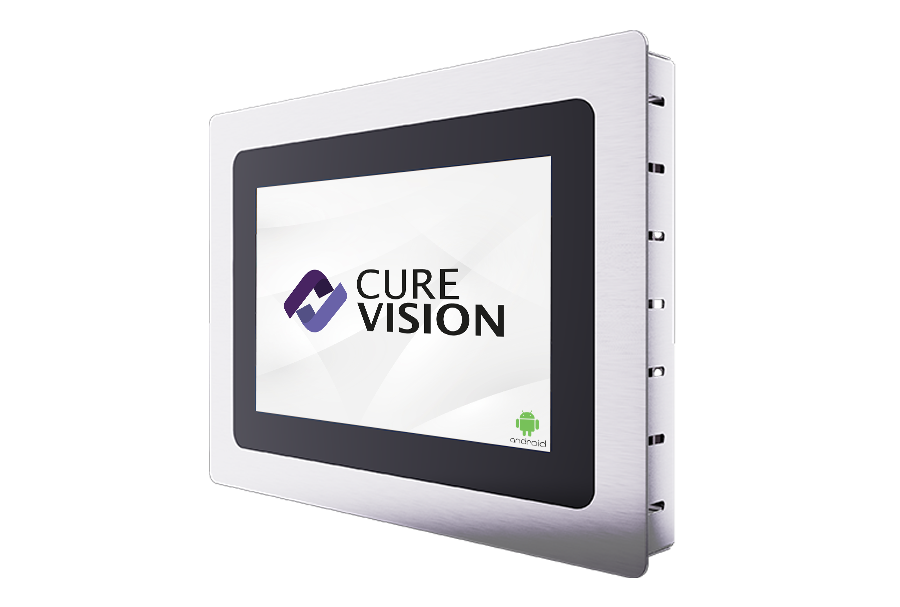

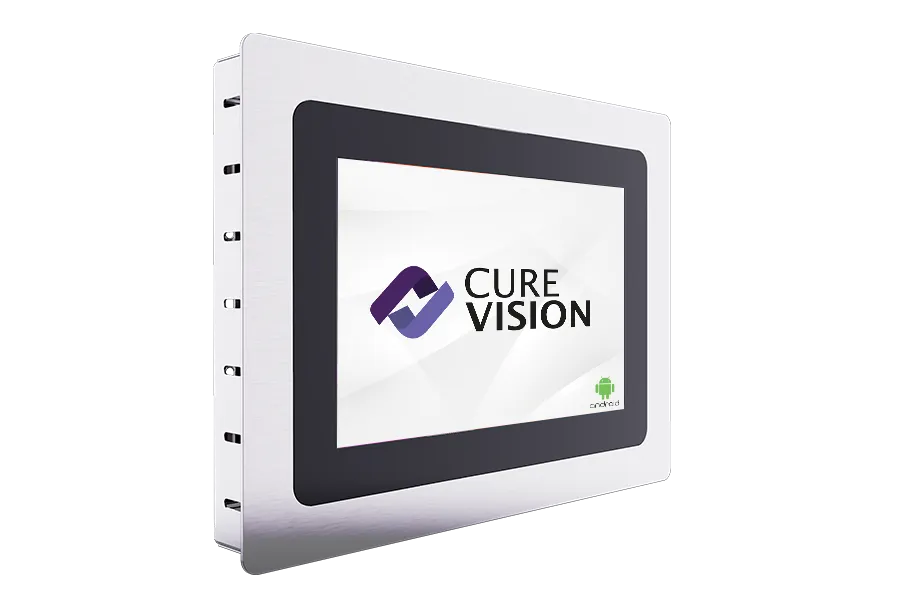

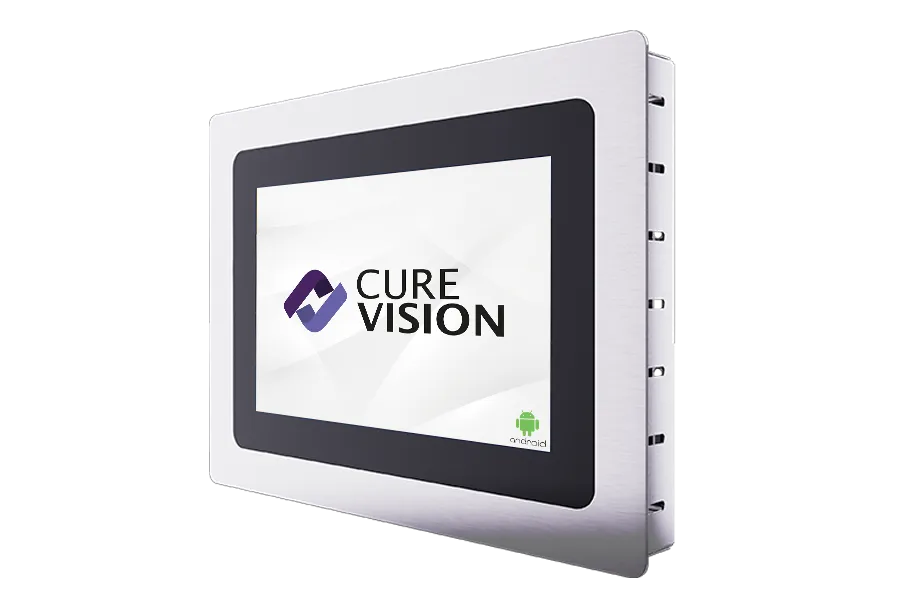

HPC-310 AND Series

10.1'' Door Signage Display

CureVision Door Information Displays are meticulously crafted to seamlessly integrate with your corporate identity and architectural aesthetics, serving as invaluable tools for guidance and information within healthcare facilities. Ideal for deployment in polyclinics, meeting rooms, and conference rooms, these displays offer a perfect blend of functional excellence and visual sophistication.

Key Features:

Dynamic Information Publication: Keep patients, visitors, and staff informed with real-time updates and announcements displayed prominently on CureVision Door Information Displays. Facilitate efficient communication by delivering crucial information where it matters most.

Bespoke Design for Institutional Identity: Enhance the visual appeal of your healthcare institution with our Door Information Displays, uniquely designed to align with your corporate identity and architectural decor. Create a cohesive and professional ambience.

Robust Industrial Stainless Case: Built to withstand the demands of healthcare environments, the displays feature a durable industrial stainless case, ensuring longevity and reliability even in high-traffic areas.

Wide Operating Temperature Range: From the chill of waiting areas to the warmth of meeting rooms, CureVision Door Information Displays operate flawlessly within a broad temperature range from 0 to 60°C, ensuring consistent performance in diverse settings.

Instant Remote Support: Experience unparalleled support with instant connection analysis and solution assistance through remote connectivity. This feature enables swift issue resolution, minimizing downtime and maximizing the functionality of the displays.

Elegant Design
Elegant Design
Customizing with Corporate Color and Logo
Customizing with Corporate Color and Logo
Durable and Long Lasting
Durable and Long Lasting

Sectors

Technical Specifications

System
CPU :
All Winner R18, Quad Core,Cortex A53 1.5 GHz
Cache :
N.A.
Memory :
1G LPDDR3 (Option 2G)
Video RAM :
N.A.
Control :
N.A.
Watchdog Timer :
Support
Android OS :
Android 6.0
I/O
Serial Port :
3 x RS-232 ports (Optional)
Parallel Port :
N.A.
USB Port :
2 x USB 2.0
KB / MS :
N.A.
LAN :
1x Lan
Wireless LAN :
802.11 b / g (Optional)
Audio :
Support L/R phone jack and 10W / 8Rx2
Expansion Slot :
N.A.
Data Storage
EEMC :
8GB/32GB
Feed
Input :
110 / 220VAC - 12 / 24VDC - PoE
Extra Video Output
Type :
HDMI
Max. Resolution :
1920x1080 @ 60Hz
LCD Screen
Backlight Half-Life :
30,000 hours
Type and Size :
10.1” / 16:9
Max. Resolution :
1280 x 800
Pixel Pitch :
0.297mm x 0.297mm
Max Color :
16.7 M
Brightness (cd/m2) :
400cd
Contrast Ratio :
700/1
Viewing Angle :
170°(H),170°(V)
Touch Screen :
10.1” - Capacitive Touch ( Optional )
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Front Frame :
Stainless Steel Frame
Weight :
Variable according to screen size (1—5 kg)
Dimensions :
(WxHxD) Variable by screen size
Mounting :
Built-in
Order Code
CPU :
Cortex A53
PSU :
AC110/220, DC12/24, PoE
RAM :
R4, R8, R16
HDD :
EMMC8G, EMMC32G(Optional)
Wifi :
Optional
