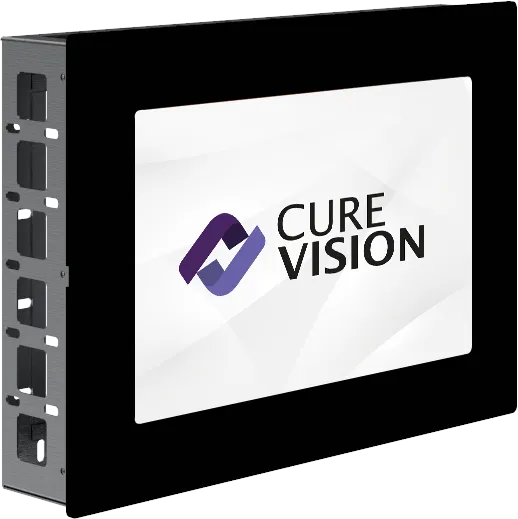

OPC-310 Series

10.1'' Door Signage Display

CureVision Door Information Displays are meticulously crafted to seamlessly integrate with your corporate identity and architectural aesthetics, serving as invaluable tools for guidance and information within healthcare facilities. Ideal for deployment in polyclinics, meeting rooms, and conference rooms, these displays offer a perfect blend of functional excellence and visual sophistication.

Key Features:

Real-time Information Integration: Seamlessly displays accurate information directly from the hospital information system.

Wait Time Reduction: Mitigate perceived wait times in critical areas, such as emergency rooms, through clear communication.

Concise Messaging: Optimize messages for clarity and visual appeal, boosting patient, guest, and visitor satisfaction.

Cross-promotion: Showcase and cross-promote various hospital services to effectively inform and engage your audience.

Future Services and Expansion Updates: Keep your audience informed about upcoming services and future expansion plans.

Introduction to New Staff: Introduce new physicians and staff members to enhance transparency and familiarity.

Customization Options: Personalize your digital door signage with corporate colours and logo options.

Robust Industrial Design: Housed in a slim, durable stainless steel case for long-lasting performance.

Adaptable Operating Temperature: Functional in a wide temperature range of 0-60 °C, ensuring reliability in various environments.

Low Power Consumption: Energy-efficient design with longer backlight half-life, complemented by optional auto backlight adjustment sensor for optimal performance.

Elegant Design
Elegant Design
Customizing with Corporate Color and Logo
Customizing with Corporate Color and Logo

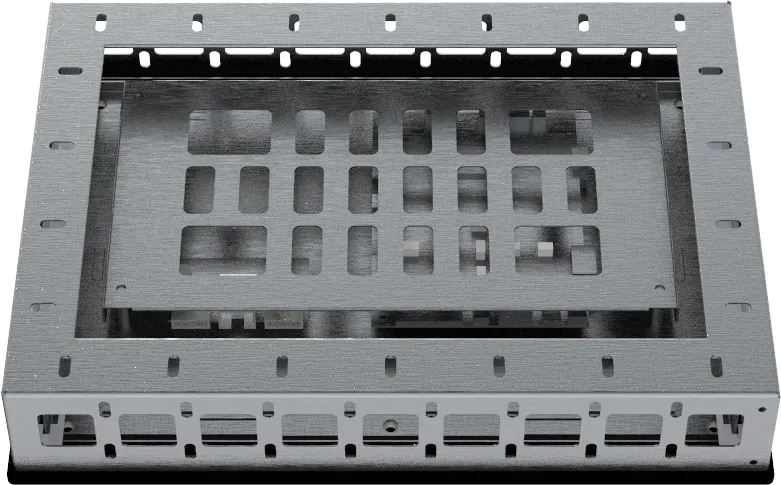

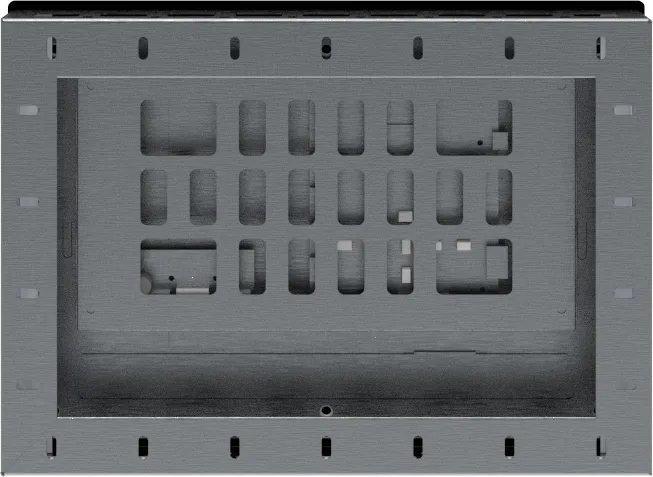

Durable and Long Lasting
Durable and Long Lasting

Sectors

Technical Specifications

System
CPU :
Intel® Celeron N2930 SoC
Cache :
N.A.
Memory :
1 x 204-pin DDR3L-1333 SO-DIMM up to 8GB
Video RAM :
Intel HD Graphics, 313MHz - 854MHz
Control :
Intel® NM10 / QM77
Watchdog Timer :
255 Level Reset
System Fan :
1 x 4cm / 10CFM
I/O
Serial Port :
Serial port headers (3 * RS232, 1 * RS232/422/485)
Parallel Port :
SPP/EPP/ECP
USB Port :
4 x (USB 2.0/3.0)
KB / MS :
1 x PS2 K/B and Mouse
LAN :
2 x Realtek RTL8111G Gigabit LAN with Enhanced Surge Protection
Wireless LAN :
802.11 b / g (Optional)
Audio :
Realtek ALC662 HD Audio codec
Expansion Slot :
mSATA/mini-PCI Express Combo slot
Data Storage
SSD :
M-SATA
Feed
Input :
110 / 220VAC - 12 / 24VDC - PoE
Extra Video Output
Type :
HDMI/DVI
Max. Resolution :
1920x1080
LCD Screen
Backlight Half-Life :
30,000 hours
Type and Size :
11.6” / 16:9
Max. Resolution :
1280 x 800
Pixel Pitch :
0.297mm x 0.297mm
Max Color :
16.7 M
Brightness (cd/m2) :
250cd
Contrast Ratio :
700/1
Viewing Angle :
140°(H),120°(V)
Touch Screen :
11.6” - Capacitive Touch
Mechanical & Environmental Features
Order Code
CPU :
J1900
PSU :
AC110/220, DC12/24, PoE
RAM :
R4, R8
HDD :
32GB
Wifi :
Optional

Support

Please contact us for information about the products or for technical support.
