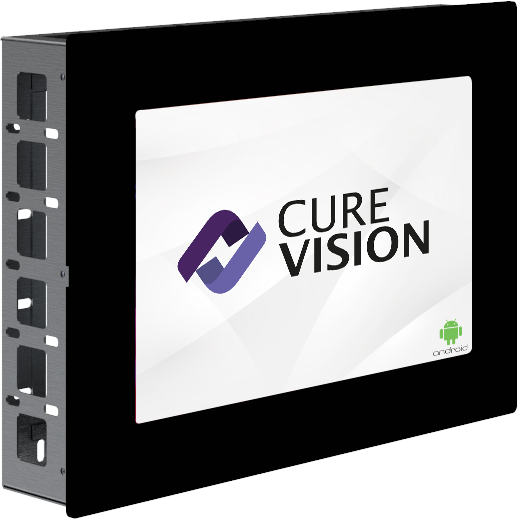

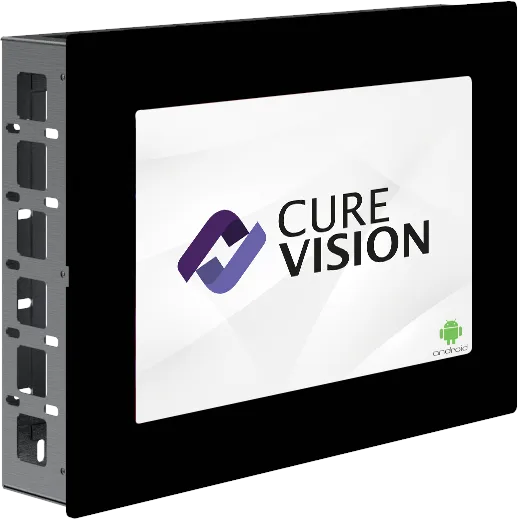

OPC-310 AND Series

10.1'' Door Signage Display

CureVision Door Information Displays are meticulously crafted to seamlessly integrate with your corporate identity and architectural aesthetics, serving as invaluable tools for guidance and information within healthcare facilities. Ideal for deployment in polyclinics, meeting rooms, and conference rooms, these displays offer a perfect blend of functional excellence and visual sophistication.

Key Features:

Real-time Information Integration: Seamlessly displays accurate information directly from the hospital information system.

Wait Time Reduction: Mitigate perceived wait times in critical areas, such as emergency rooms, through clear communication.

Concise Messaging: Optimize messages for clarity and visual appeal, boosting patient, guest, and visitor satisfaction.

Cross-promotion: Showcase and cross-promote various hospital services to effectively inform and engage your audience.

Future Services and Expansion Updates: Keep your audience informed about upcoming services and future expansion plans.

Introduction to New Staff: Introduce new physicians and staff members to enhance transparency and familiarity.

Customization Options: Personalize your digital door signage with corporate colours and logo options.

Robust Industrial Design: Housed in a slim, durable stainless steel case for long-lasting performance.

Adaptable Operating Temperature: Functional in a wide temperature range of 0-60 °C, ensuring reliability in various environments.

Low Power Consumption: Energy-efficient design with longer backlight half-life, complemented by optional auto backlight adjustment sensor for optimal performance.

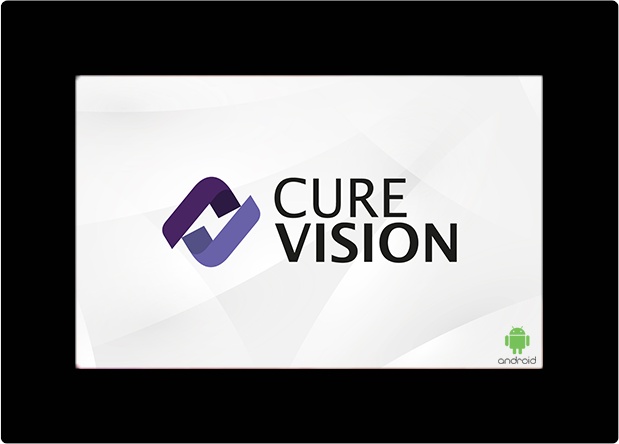

Elegant Design
Elegant Design
Customizing with Corporate Color and Logo
Customizing with Corporate Color and Logo

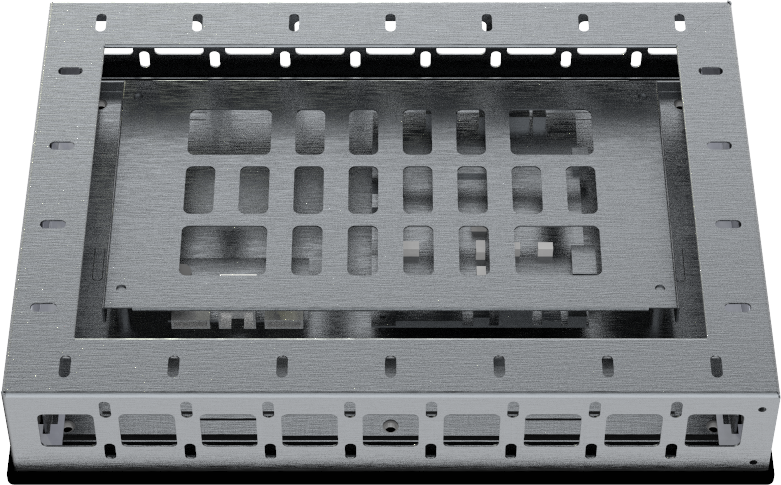

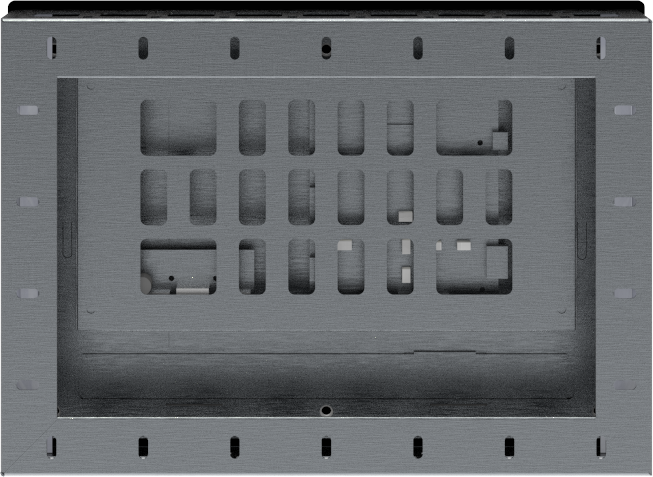

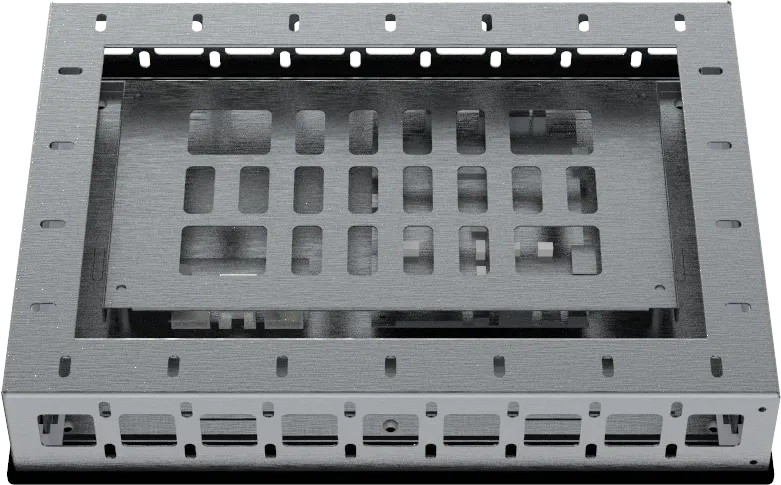

Durable and Long Lasting
Durable and Long Lasting

Sectors

Technical Specifications

System
CPU :
All Winner R18, Quad Core,Cortex A53 1.5 GHz
Cache :
N.A.
Memory :
1G LPDDR3 (Option 2G)
Video RAM :
N.A.
Control :
N.A.
Watchdog Timer :
Support
System Fan :
Android 6.0
I/O
Serial Port :
3 x RS-232 ports (Opsiyonel)
Parallel Port :
N.A.
USB Port :
2 x USB 2.0
KB / MS :
N.A.
LAN :
1x Lan
Wireless LAN :
802.11 b / g (Optional)
Audio :
Support L/R phone jack and 10W / 8Rx2
Expansion Slot :
N.A.
Feed
Input :
110 / 220VAC veya 12 / 24VDC veya PoE
Power (Max) :
12W
Extra Video Output
Type :
HDMI
Max. Resolution :
1920x1080 @ 60Hz
LCD Screen
Backlight Half-Life :
30,000 hours
Type and Size :
10.1” / 16:9
Max. Resolution :
1280 x 800
Pixel Pitch :
0.297mm x 0.297mm
Max Color :
16.7 M
Brightness (cd/m2) :
400cd
Contrast Ratio :
800/1
Viewing Angle :
170°(H),170°(V)
Touch Screen :
10.1" - Capacitive Touch ( Optional )
Mechanical & Environmental Features
Operating Temperature :
0 ~ 50°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Front Frame :
Stainless Steel, Aluminum or Glass
Weight :
Variable according to screen size (1—5 kg)
Dimensions :
(WxHxD) Variable by screen size
Mounting :
Built-in
Order Code
CPU :
Cortex A53
PSU :
AC110/220, DC12/24, PoE
RAM :
R4, R8, R16
HDD :
EMMC8G, EMMC32G (Optional)
Wifi :
Optional

Support

Please contact us for information about the products or for technical support.
