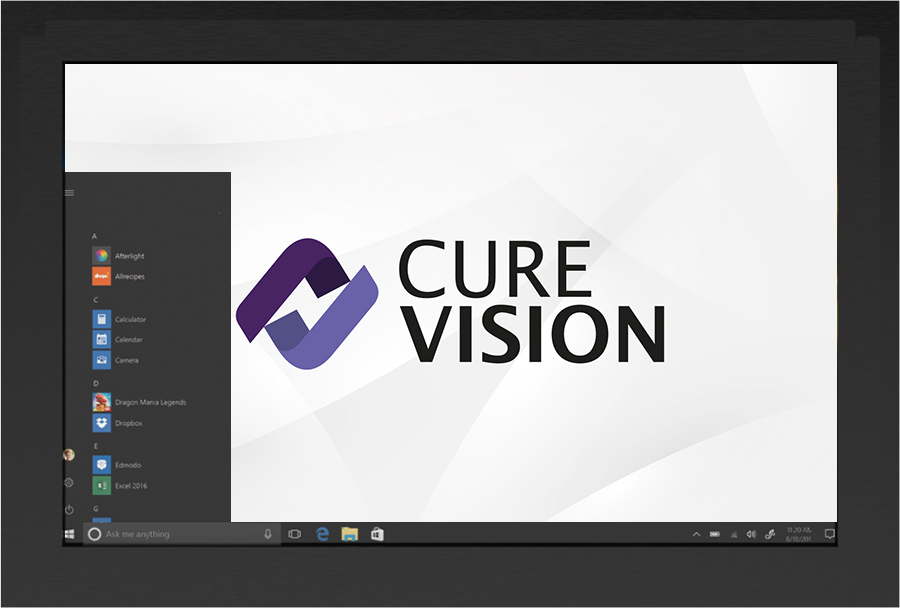

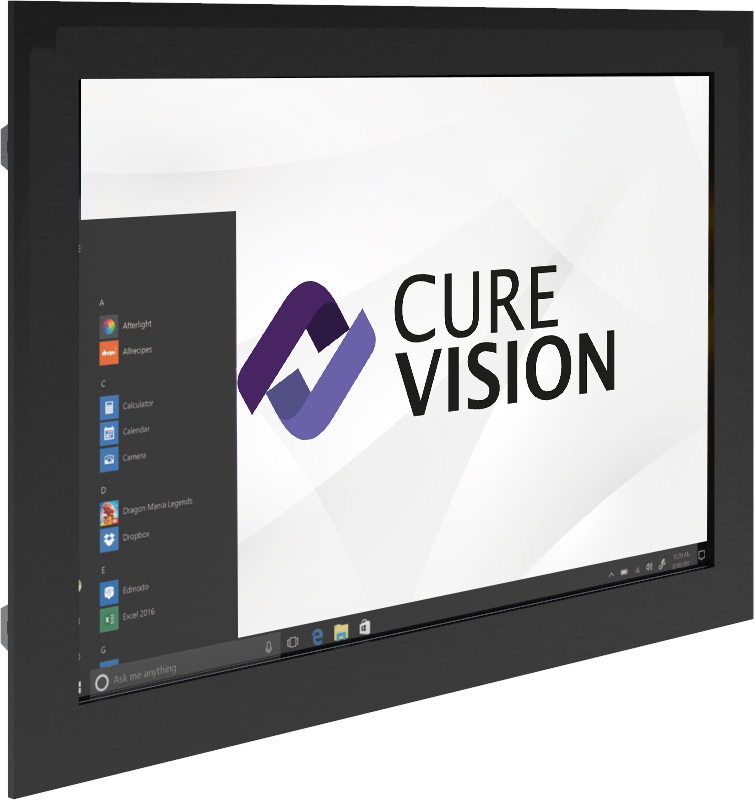

OPC-317 Series

17'' Door Signage Display

CureVision Door Information Displays are meticulously crafted to seamlessly integrate with your corporate identity and architectural aesthetics, serving as invaluable tools for guidance and information within healthcare facilities. Ideal for deployment in polyclinics, meeting rooms, and conference rooms, these displays offer a perfect blend of functional excellence and visual sophistication.

Key Features:

Real-time Information Integration: Seamlessly displays accurate information directly from the hospital information system.

Wait Time Reduction: Mitigate perceived wait times in critical areas, such as emergency rooms, through clear communication.

Concise Messaging: Optimize messages for clarity and visual appeal, boosting patient, guest, and visitor satisfaction.

Cross-promotion: Showcase and cross-promote various hospital services to effectively inform and engage your audience.

Future Services and Expansion Updates: Keep your audience informed about upcoming services and future expansion plans.

Introduction to New Staff: Introduce new physicians and staff members to enhance transparency and familiarity.

Customization Options: Personalize your digital door signage with corporate colours and logo options.

Robust Industrial Design: Housed in a slim, durable stainless steel case for long-lasting performance.

Adaptable Operating Temperature: Functional in a wide temperature range of 0-60 °C, ensuring reliability in various environments.

Elegant Design
Elegant Design
Customizing with Corporate Color and Logo
Customizing with Corporate Color and Logo
Durable and Long Lasting
Durable and Long Lasting

Sectors

Technical Specifications

System
CPU :
Intel® Celeron™ Processor J1900 Low Power Fanless
Cache :
2MB
Memory :
2 x DDR3 SoDIMM max 4GB / 8GB Pixel Pitch
Video RAM :
Max 128 MB shared memory
Control :
N.A.
Watchdog Timer :
255 Level Reset
System Fan :
1 x 4cm / 10CFM
I/O
Serial Port :
3 x RS-232 ports
Parallel Port :
N.A.
USB Port :
4 x USB 2.0
KB / MS :
1 x PS2 K/B and Mouse
LAN :
1 x LAN Realtek Gigabit Ethernet,
Wireless LAN :
802.11 b / g (Optional)
Audio :
Line in & out (AC’97 codec audio)
Expansion Slot :
MiniPCIe
Data Storage
HDD / Type :
2.5” HDD/SSD
Feed
Input :
110 / 220VAC - 12 / 24VDC - PoE
Extra Video Output
Type :
HDMI
Max. Resolution :
1600 x 1200
LCD Screen
Type and Size :
17" / 4:3
Max. Resolution :
1280x1024, XGA
Pixel Pitch :
0.297mm x 0.297mm
Max Color :
16.7 M
Brightness (cd/m2) :
350
Contrast Ratio :
1000/1
Viewing Angle :
160°(H),160°(V)
Back Light MTBF :
50,000 hours
Touch Screen :
N.A
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Front Frame :
Glass
Weight :
Variable according to screen size (1—5 kg)
Dimensions :
(WxHxD) Variable by screen size
Mounting :
Built-in
Order Code
CPU :
J1900
PSU :
AC110/220, DC12/24, PoE
RAM :
R4, R8
HDD :
HDD 320GB, SSD 32 GB, SSD 64 GB
Wifi :
Optional
